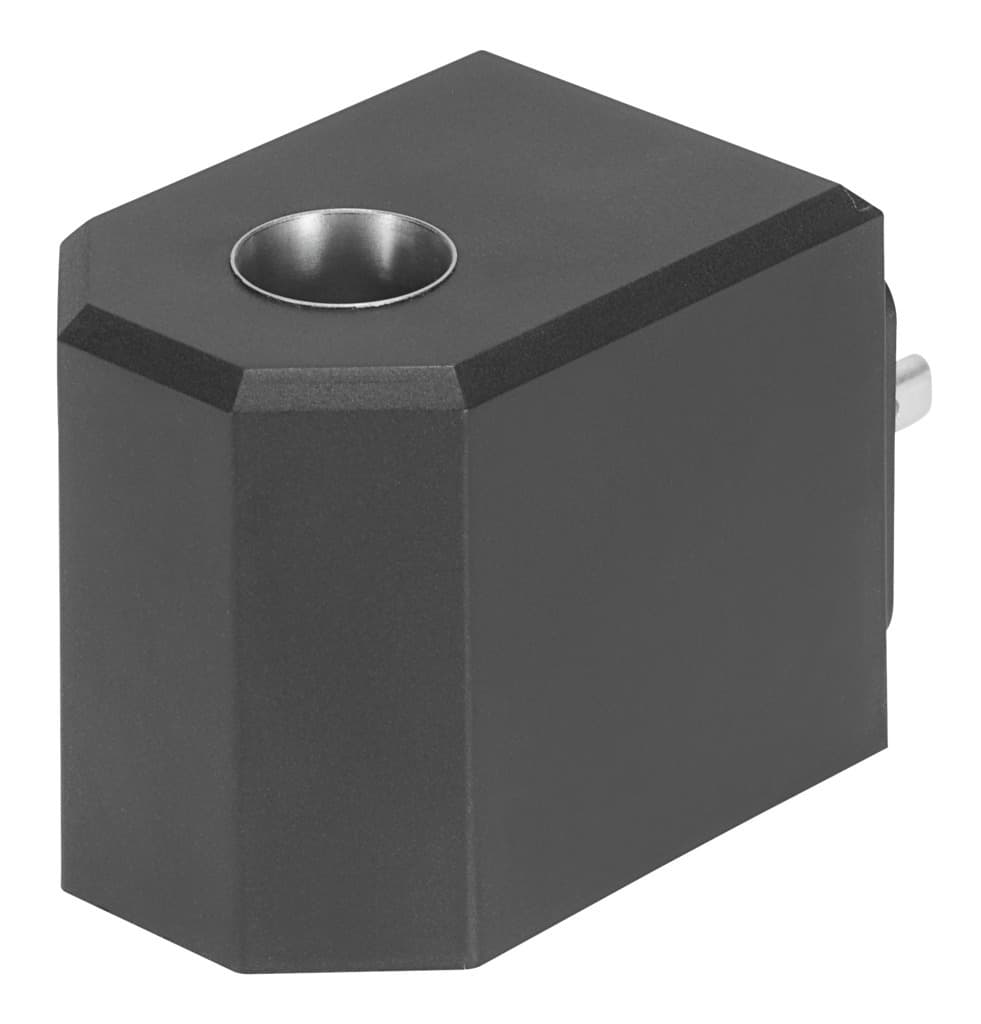

vacc-s13-18-a1-2u
Product ID:13071
Updated: 2026/7/18
Key Features
- 1Operate at 100% duty cycle with 110 V DC, 1.8 W for consistent performance.
- 2Ensure safe operation with CE marking and EU Low Voltage Directive compliance.
- 3Resist corrosion effectively with a very high CRC 4 rating.
- 4Utilize a durable polyamide 6 housing and polyurethane seal.
- 5Mount flexibly in harsh environments with IP65 protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Switching position indication | no | Duty cycle | 100% |
| Insulation class | H | Coil characteristics | 110 V DC: 1.8 W 110 V AC: 50/60 Hz, power 1.8 VA |
| Permissible voltage fluctuations | -15 % / +10 % | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
| Ambient temperature | -20°C 60°C | Product weight | 210g |
| Electrical connection | Form A Plug as per EN 175301-803 | Note on materials | RoHS-compliant |
| Solenoid coil material | PA UP | Manufacturer ID | 562891 |
Specifications may be subject to change without notice
