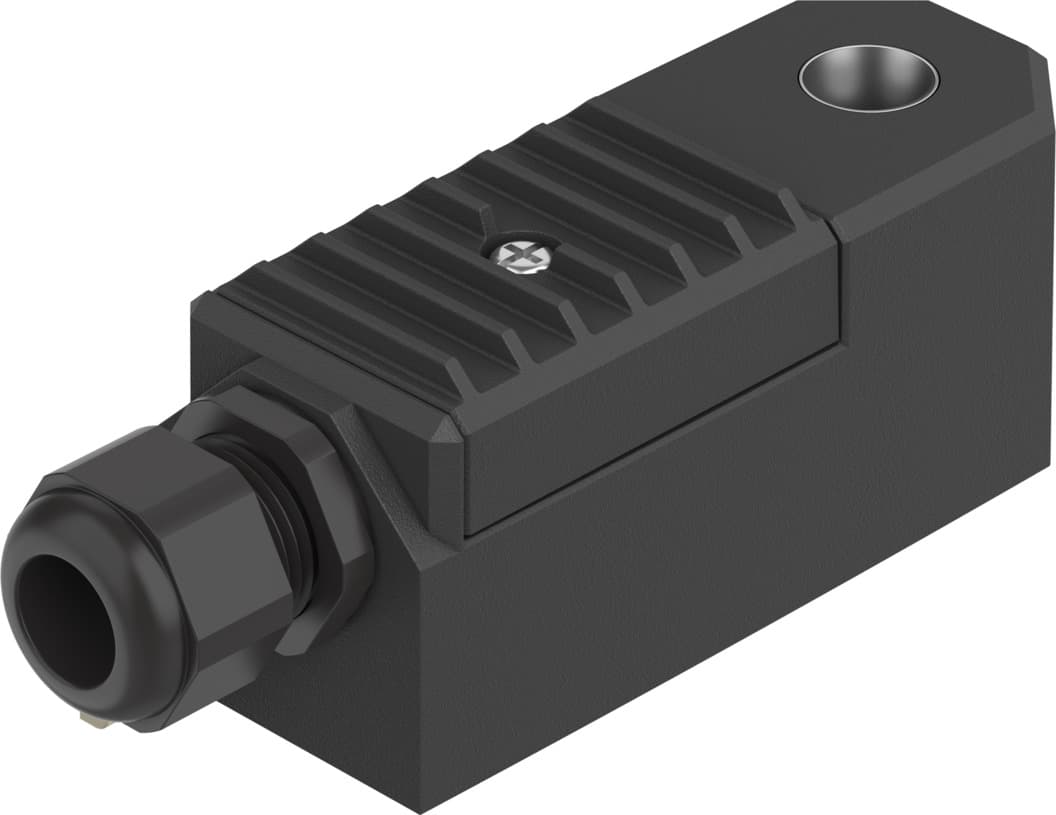

vacc-s13-18-k4-27u-ne4me
Product ID:16845
Updated: 2026/7/4
Key Features
- 1Achieve 100% duty cycle for continuous operation without overheating.
- 2Ensure reliability with Class H insulation material in demanding conditions.
- 3Operate safely in explosive environments including Zone 1 and Zone 21.
- 4Simplify installation with a robust terminal box and M20x1.5 cable entry thread.
- 5Meet environmental and safety standards with RoHS compliance and enhanced encapsulation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Switching position indication | no | Duty cycle | 100% |
| Insulation class | H | Coil characteristics | 60 V AC: 40/65 Hz, power 1.8 VA 60 V DC: 1.8 W |
| Permissible voltage fluctuations | -15 % / +10 % | Explosion protection certification outside the EU | EPL Db (CN) EPL Gb (CN) |
| Explosion prevention and protection | Zone 1 (CN) Zone 21 (CN) | Certificate issuing authority | GYJ23.1170X |
| Type of ignition protection for gas | Ex eb mb IIC T6… T4 Gb | Type of (ignition) protection for dust | Ex tb IIIC T85°C… T130°C Db |
| Explosive ambient temperature | T4, T130°C: -30°C <= Ta <= +60°C T5, T95°C: -30°C <= Ta <= +60°C T6, T85°C: -30°C <= Ta <= +50°C | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP65 | Product weight | 330g |
| Electrical connection | Terminal box, cable entry thread M20x1.5 | Note on materials | RoHS-compliant |
| Manufacturer ID | 8118333 |
Specifications may be subject to change without notice
