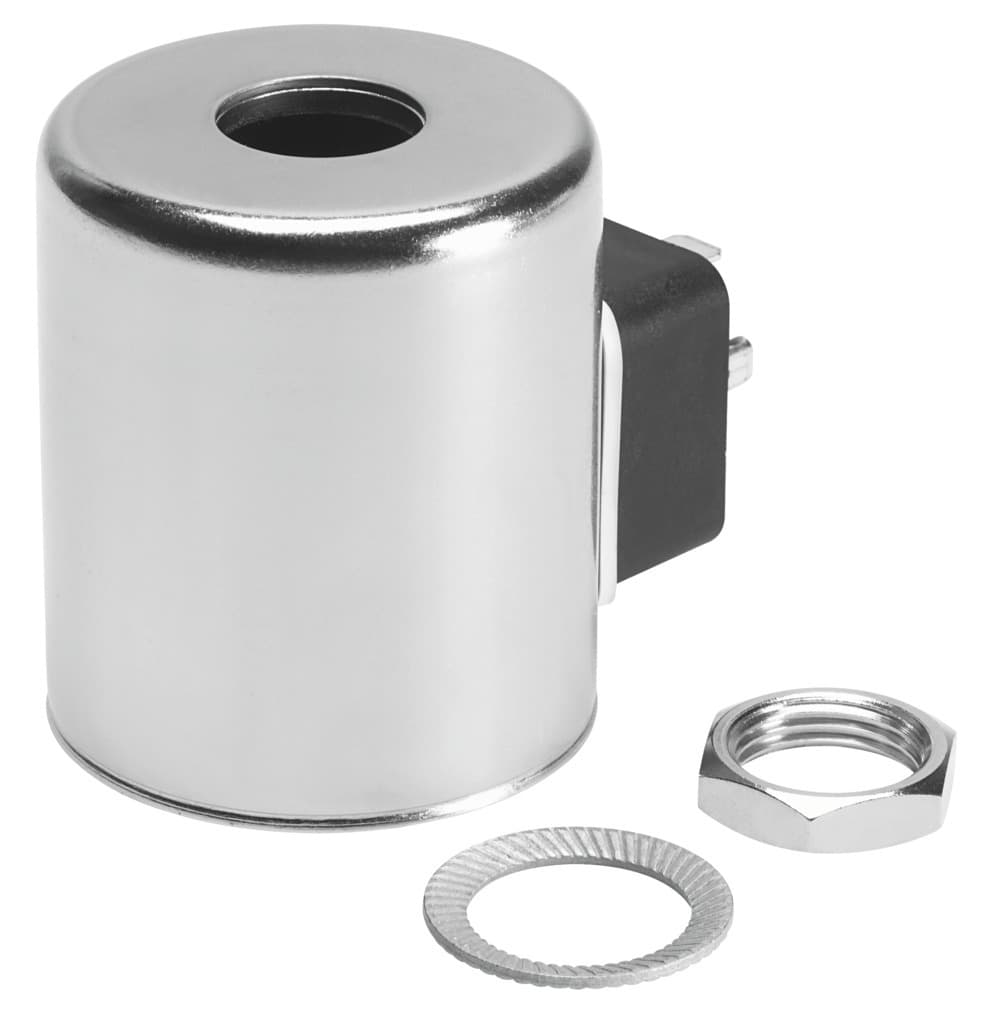

vacc-s18-120-a1-1a
Product ID:15945
Updated: 2026/4/3
Key Features
- 1Achieve high corrosion resistance with CRC 4 classification. 2、Ensure reliable operation in harsh environments via IP65 protection. 3、Enable continuous operation with a 100% duty cycle. 4、Power with 24 V AC, 50/60 Hz, and 12.0 VA input. 5、Guarantee durability and compliance using RoHS-approved PA steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Switching position indication | no | Duty cycle | 100% |
| Insulation class | H | Coil characteristics | 24 V AC: 50/60 Hz, power 12.0 VA |
| Permissible voltage fluctuations | -15 % / +10 % | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
| Ambient temperature | -20°C 60°C | Product weight | 530g |
| Electrical connection | Form A Plug as per EN 175301-803 | Note on materials | RoHS-compliant |
| Solenoid coil material | PA Steel | Manufacturer ID | 8040890 |
Specifications may be subject to change without notice
