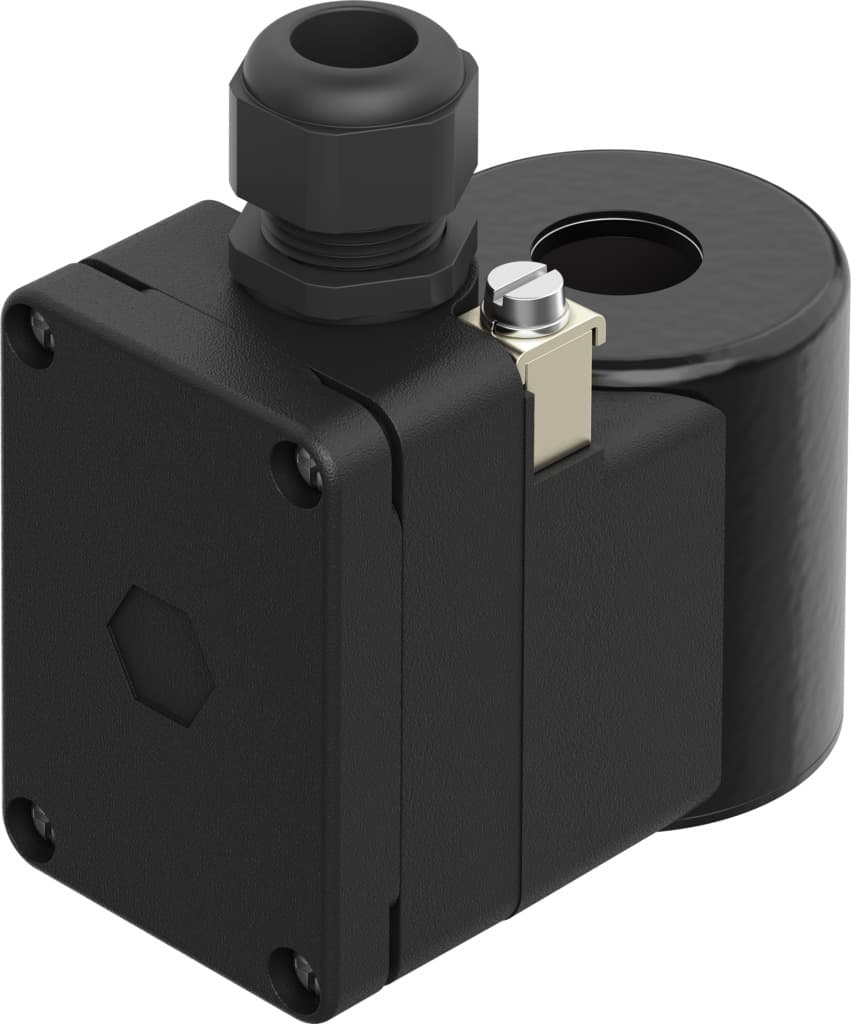

vacc-s18-120-k4-7-ks4me
Product ID:16830
Updated: 2026/7/4
Key Features
- 1Ensure reliable valve actuation with a 100% duty cycle.
- 2Operate safely in explosive dust atmospheres with EPL Db/Gb certification.
- 3Connect flexibly using 24 V DC, 110 V DC, or 230 V AC power.
- 4Rely on durable steel housing and a polyamide cover.
- 5Meet IEC 60529 and IEC 60664-1 standards for overvoltage protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Switching position indication | no | Duty cycle | 100% |
| Insulation class | H | Coil characteristics | 48 V DC: 12.0 W |
| Permissible voltage fluctuations | -15 % / +10 % | Explosion protection certification outside the EU | EPL Db (KR) EPL Gb (KR) |
| Explosion prevention and protection | Zone 1 (KR) Zone 21 (KR) | Certificate issuing authority | 22-AV4BO-0256X 22-AV4BO-0257X |
| Type of ignition protection for gas | Ex e mb IIC T4 | Type of (ignition) protection for dust | Ex tD A21 IP66 T120°C |
| Explosive ambient temperature | T4, T120°C: -25°C <= Ta <= +40°C | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP66 | Product weight | 580g |
| Electrical connection | Terminal box, cable entry thread M20x1.5 | Note on materials | RoHS-compliant |
| Manufacturer ID | 8118318 |
Specifications may be subject to change without notice
