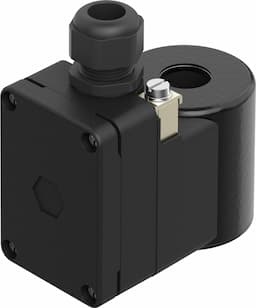

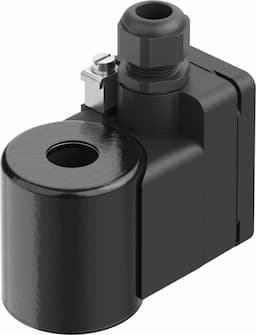

vacc-s18-35-k4-1u-ks4me
Product ID:16829
Updated: 2026/4/3
Key Features
- 1Achieve precise electrical actuation for industrial control. 2、Integrate easily with a lightweight 580g design. 3、Operate safely in Zone 1 (KR) and Zone 21 (KR) certified environments. 4、Ensure reliability with Class H insulation in harsh conditions. 5、Optimize energy use with 3.5 W at 24 V DC power rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Switching position indication | no | Duty cycle | 100% |
| Insulation class | H | Coil characteristics | 24 V DC: 3.5 W 24 V AC: 50/60 Hz, power 3.5 VA |
| Permissible voltage fluctuations | -15 % / +10 % | Explosion protection certification outside the EU | EPL Db (KR) EPL Gb (KR) |
| Explosion prevention and protection | Zone 1 (KR) Zone 21 (KR) | Certificate issuing authority | 22-AV4BO-0256X 22-AV4BO-0257X |
| Type of ignition protection for gas | Ex e mb IIC T5, T6 | Type of (ignition) protection for dust | Ex tD A21 IP66 T85/T95°C |
| Explosive ambient temperature | T5, T95°C: -25°C <= Ta <= +60°C T6, T80°C: -25°C <= Ta <= +50°C | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP66 | Product weight | 580g |
| Electrical connection | Terminal box, cable entry thread M20x1.5 | Note on materials | RoHS-compliant |
| Manufacturer ID | 8118317 |
Specifications may be subject to change without notice
