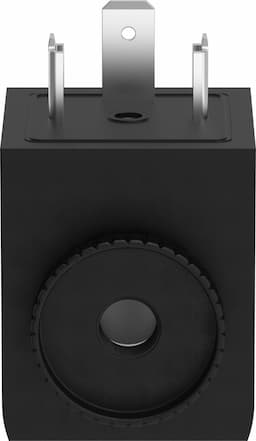

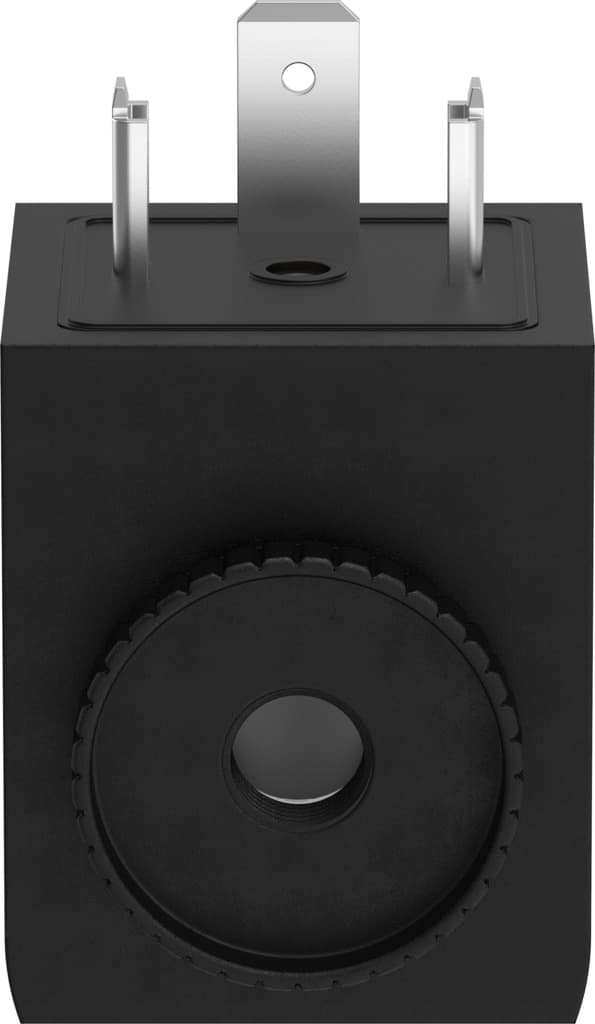

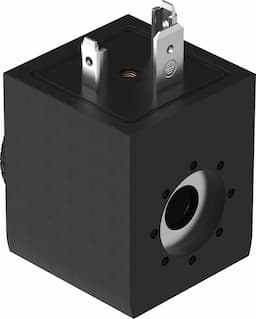

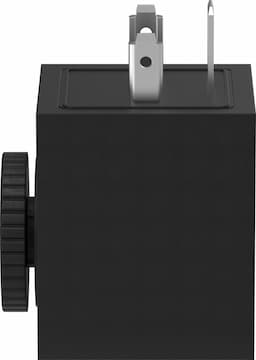

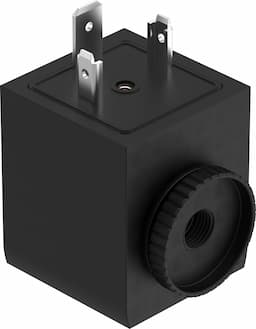

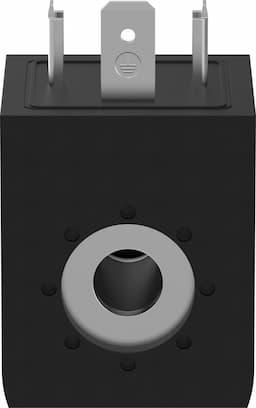

vacf-a-a1-7
Product ID:15385
Updated: 2026/4/3
Key Features
- 1Ensure continuous operation with a 100% duty cycle. 2、Provide reliable performance via H-class insulation material. 3、Allow stable operation under +/-10% voltage fluctuations. 4、Enable flexible and easy installation into existing systems. 5、Offer robust IP65 protection against dust and water ingress.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Conforms to standard | IEC 61010-1 |
| Duty cycle | 100% | Insulation class | H |
| Coil characteristics | 48 V DC: 2.8 W | Permissible voltage fluctuations | +/- 10 % |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| Certificate issuing authority | DNVGL-TAA000011J UL MH18122 | Restricted ambient and media temperature | -20 - 50 °C |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 50°C | Degree of protection | IP65 |
| Ambient temperature | -20°C 60°C | Product weight | 82.7g |
| Electrical connection | Form A as per EN 175301-803 | Type of mounting | With knurled nut |
| Note on materials | RoHS-compliant | Housing material | PA Steel |
| Solenoid coil material | Copper Steel Thermoplastic | Material of winding | Copper |
| Manufacturer ID | 8030823 |
Specifications may be subject to change without notice
