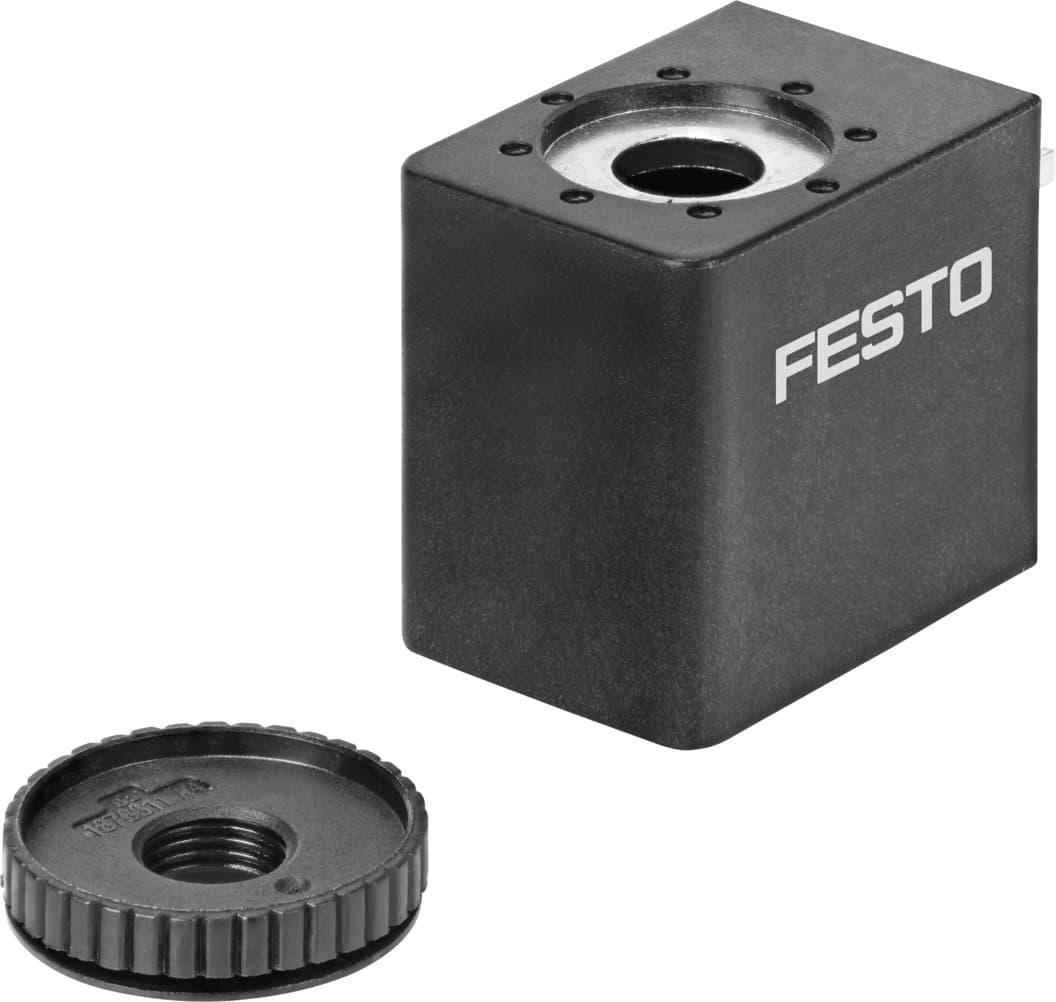

vacf-b-c1-7a
Product ID:15380
Updated: 2026/4/3
Key Features
- 1Operate on 48 V AC, 50/60 Hz with 3.9 VA pick-up and 2.7 VA holding power. 2、Ensure compliance and durability with RoHS-certified copper, steel, and thermoplastic construction. 3、Protect against harsh conditions with a reliable IP65-rated enclosure. 4、Maintain performance across a wide -20°C to 50°C operating temperature range. 5、Simplify installation and service via convenient knurled nut mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Conforms to standard | IEC 61010-1 |
| Duty cycle | 100% | Insulation class | H |
| Coil characteristics | 48 V AC: 50/60 Hz, initial power 3.9 VA, holding power 2.7 VA | Permissible voltage fluctuations | +/- 10 % |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH18122 |
| Restricted ambient and media temperature | -20 - 50 °C | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -20°C 50°C |
| Degree of protection | IP65 | Ambient temperature | -20°C 60°C |
| Product weight | 53.5g | Electrical connection | Form C as per EN 175301-803 |
| Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
| Housing material | PA Steel | Solenoid coil material | Copper Steel Thermoplastic |
| Material of winding | Copper | Manufacturer ID | 8030814 |
Specifications may be subject to change without notice
