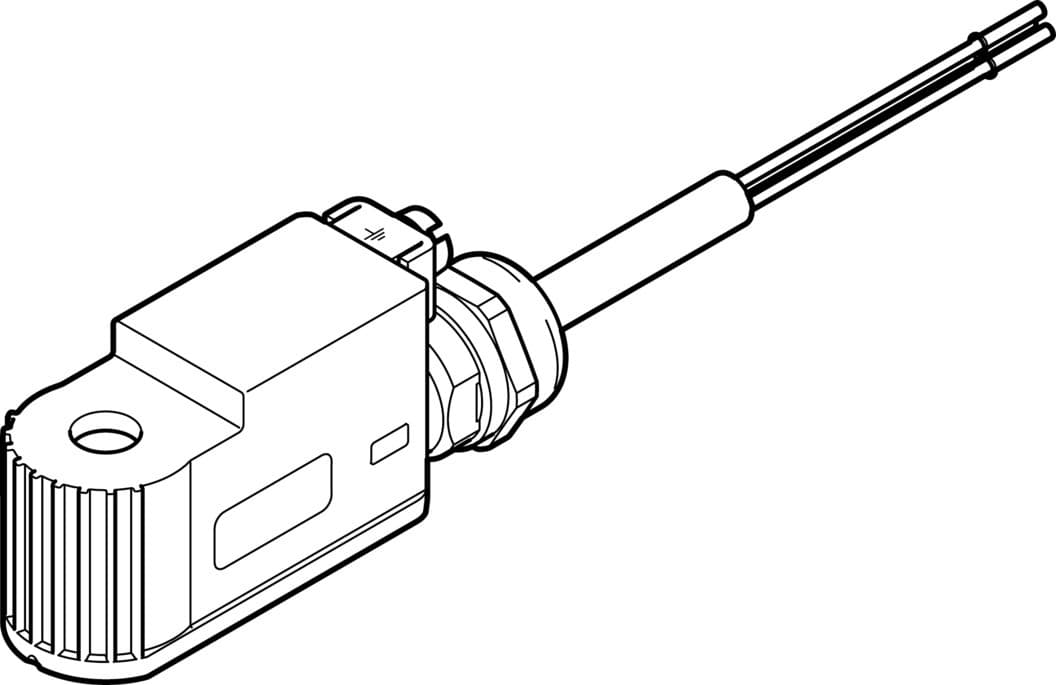

vacf-b-k1-3a-1-ex4-m
Product ID:16142
Updated: 2026/4/3
Key Features
- 1Ensure safe operation in explosive atmospheres with ATEX II 2G/2D certification. 2、Achieve reliable performance across a wide -30°C to +40°C temperature range. 3、Protect against harsh conditions with a durable IP65-rated enclosure. 4、Simplify installation using the provided 3-wire cable and knurled nut. 5、Reduce long-term costs with a robust design built from aluminum, copper, and steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Switching position indication | no |
| Min. pick-up time | 10ms | Duty cycle | 100% |
| Coil characteristics | 230 V AC: 50/60 Hz, power 5.0 VA | Permissible frequency fluctuations | +/- 5% |
| Permissible voltage fluctuations | +/- 10 % | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions To UK RoHS instructions | Explosion protection certification outside the EU | EPL Db (BR) EPL Db (CN) EPL Db (GB) EPL Db (IEC-EX) EPL Gb (BR) EPL Gb (CN) EPL Gb (GB) EPL Gb (IEC-EX) |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (BR) Zone 1 (CN) Zone 1 (IEC-EX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (BR) Zone 21 (CN) Zone 21 (IEC-EX) Zone 21 (UKEX) Zone 22 (ATEX) | Certificate issuing authority | CML22UKEX5255X DNV17.0013X GYJ23.1154X IBExU 16 ATEX1146X IECEx IBE16.0024X |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex mb IIC T5 Gb | Type of (ignition) protection for dust | Ex mb IIIC T95°C Db |
| Explosive ambient temperature | -30°C <= Ta <= +40°C | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L | Degree of protection | IP65 |
| Ambient temperature | -30°C 40°C | Product weight | 170g |
| Electrical connection | 3-wire Cable with open end | Cable length | 1m |
| Nominal conductor cross section | 0.75mm2 | Type of mounting | With knurled nut |
| Note on materials | RoHS-compliant | Solenoid coil material | Aluminum Epoxy resin Copper Steel |
| Material of winding | Copper | Manufacturer ID | 8059809 |
Specifications may be subject to change without notice
