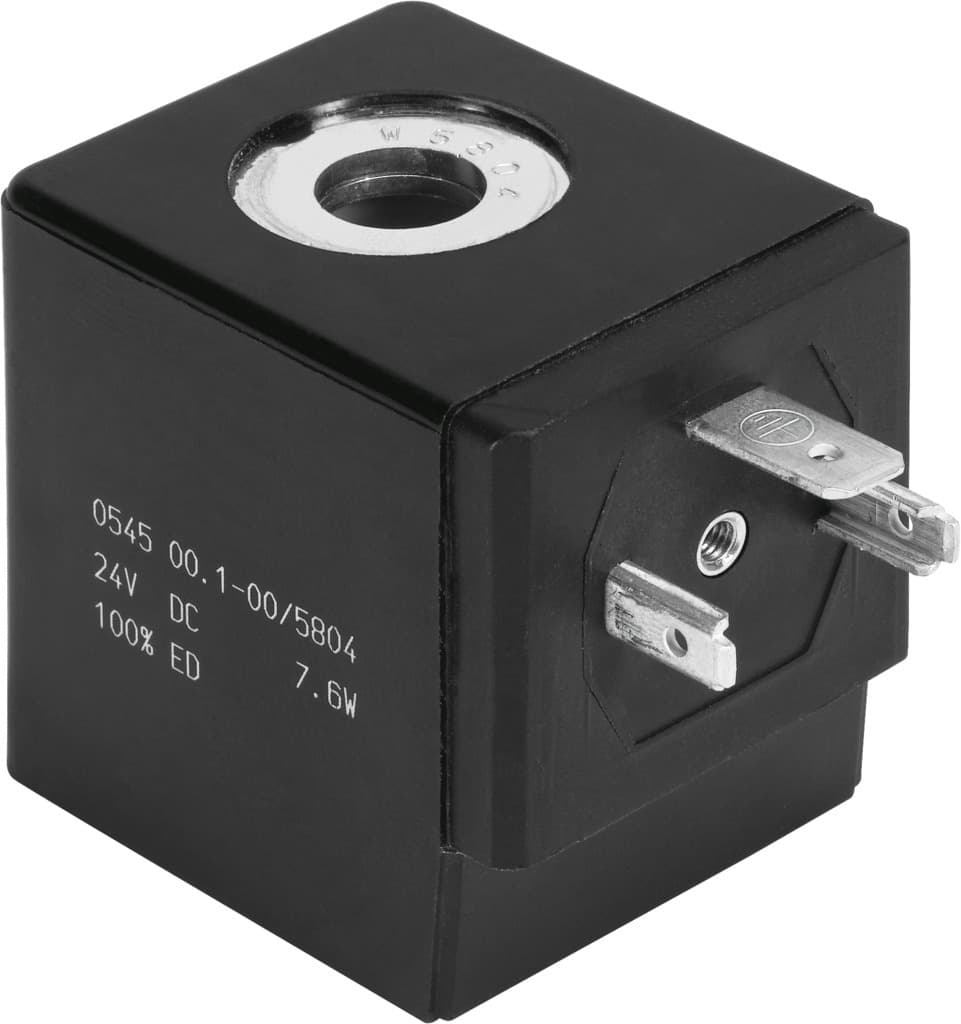

vacn-h1-a1-1
Product ID:15154
Updated: 2026/7/15
Key Features
- 1Choose optional mounting positions for flexible installation.
- 2Achieve 12 ms minimum pick-up time for fast switching.
- 3Operate with a 100% duty cycle continuously.
- 4Resist corrosion with CRC 4 for harsh environments.
- 5Ensure reliability with IP65 protection rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Switching position indication | no |
| Min. pick-up time | 12ms | Duty cycle | 100% |
| Power factor cos {phi} | 0.7 | Coil characteristics | 24 V DC: 11.9 W |
| Permissible frequency fluctuations | +/- 10% | Permissible voltage fluctuations | +/- 10 % |
| Restricted ambient and media temperature | (for limited duty cycle) -20 - 60 °C | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
| Note on degree of protection | In mounted state | Ambient temperature | -20°C 50°C |
| Max. tightening torque of pneumatic fitting | 2Nm | Product weight | 150g |
| Electrical connection | Form A Plug as per DIN EN 175301-803 Rectangular design | Type of mounting | With lock nut |
| Note on materials | RoHS-compliant | Solenoid coil material | Copper Steel Thermoplastic |
| Material of winding | Copper | Manufacturer ID | 8022877 |
Specifications may be subject to change without notice
