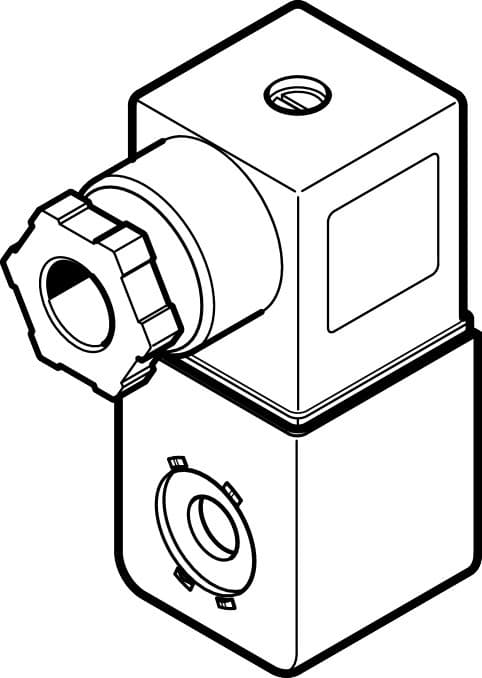

vacn-n-a1-3a-ex2-n
Product ID:15352
Updated: 2026/4/3
Key Features
- 1Ensure safe operation in hazardous environments with intrinsic safety. 2、Meet strict EU standards with ATEX certification for gas and dust. 3、Achieve flexible installation via 45° rotatable mounting increments. 4、Protect against harsh conditions with IP65 rating and plug socket. 5、Power diverse systems with wide 24DC/110-230AC voltage compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Duty cycle | 100% | Insulation class | F |
| Enameled wire insulation class | H | Coil characteristics | 230 V AC: 50 Hz, initial power 6.9 VA, holding power 4.1 VA 230 V AC: 60 Hz, initial power 5.4 VA, holding power 3.3 VA |
| Permissible voltage fluctuations | +/- 10 % | Maritime classification | See certificate |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Dc (GB) EPL Gc (GB) | Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) Zone 22 (ATEX) Zone 22 (UKEX) |
| Certificate issuing authority | DNV TAA000011J | ATEX category gas | II 3G |
| ATEX category for dust | II 3D | Type of ignition protection for gas | Ex nA IIC T5/T4 X Gc |
| Type of (ignition) protection for dust | Ex tc IIIC T95°C/T105°C X Dc | Explosive ambient temperature | -20°C <= Ta <= +60°C |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | -20°C 60°C |
| Product weight | 95g | Electrical connection | Form A as per DIN EN 175301-803 |
| Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
| Housing material | Polymer Steel | Material of pin contacts | Brass |
| Material of winding | Copper | Manufacturer ID | 8029138 |
Specifications may be subject to change without notice
