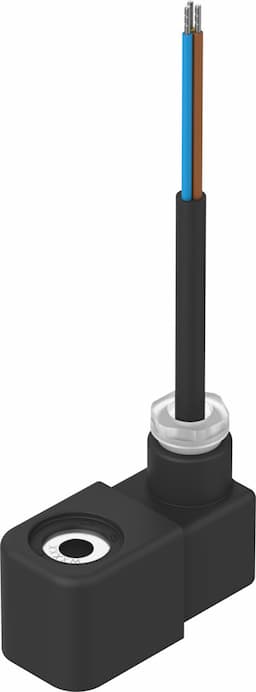

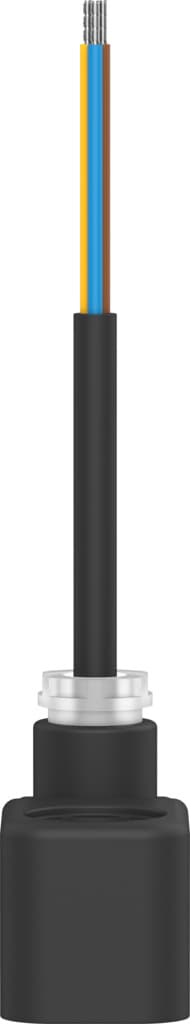

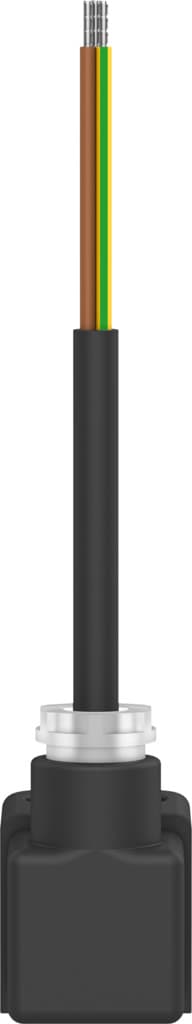

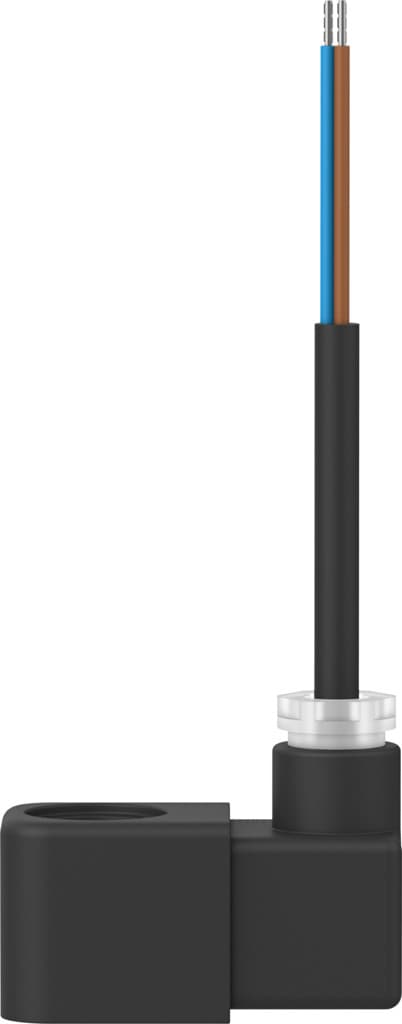

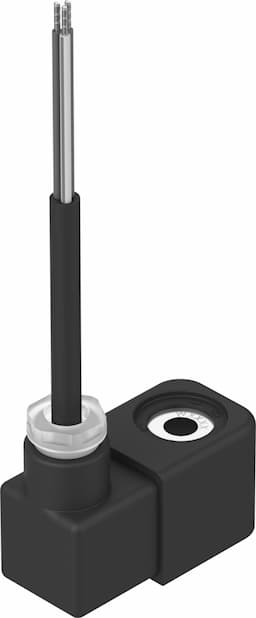

vacn-n-k1-1-10-ex4-m
Product ID:654
Updated: 2026/4/3
Key Features
- 1Ensure reliable operation with a 100% duty cycle. 2、Withstand harsh conditions at 353g with a 7mm cable. 3、Meet safety standards via ATEX and CE certification. 4、Reduce energy costs with 24V DC and 2.6W consumption. 5、Simplify installation using a flexible knurled nut mount.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Duty cycle | 100% | Insulation class | F |
| Enameled wire insulation class | H | Coil characteristics | 24 V DC: 2.6 W |
| Permissible voltage fluctuations | +/- 10 % | Maritime classification | See certificate |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU RoHS directive | UKCA marking (see declaration of conformity) | acc. to UK EX instructions To UK RoHS instructions |
| Explosion protection certification outside the EU | EPL Db (CN) EPL Db (GB) EPL Db (IEC-EX) EPL Gb (CN) EPL Gb (GB) EPL Gb (IEC-EX) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (CN) Zone 1 (IEC-EX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (CN) Zone 21 (IEC-EX) Zone 21 (UKEX) Zone 22 (ATEX) |
| Certificate issuing authority | CCC 2021322307003994 GYJ21.1327X IECEx PTB 15.0016X PTB 14 ATEX 2027 X | ATEX category gas | II 2G |
| ATEX category for dust | II 2D | Type of ignition protection for gas | Ex mb IIC T6 Gb |
| Type of (ignition) protection for dust | Ex mb IIIC T80°C Db | Explosive ambient temperature | -20°C <= Ta <= +50°C |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | -20°C 50°C |
| Product weight | 762g | Electrical connection | Cable |
| Cable diameter | 7mm | Cable length | 10m |
| Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
| Housing material | Polymer Steel | Material of winding | Copper |
| Manufacturer ID | 8141606 |
Specifications may be subject to change without notice
