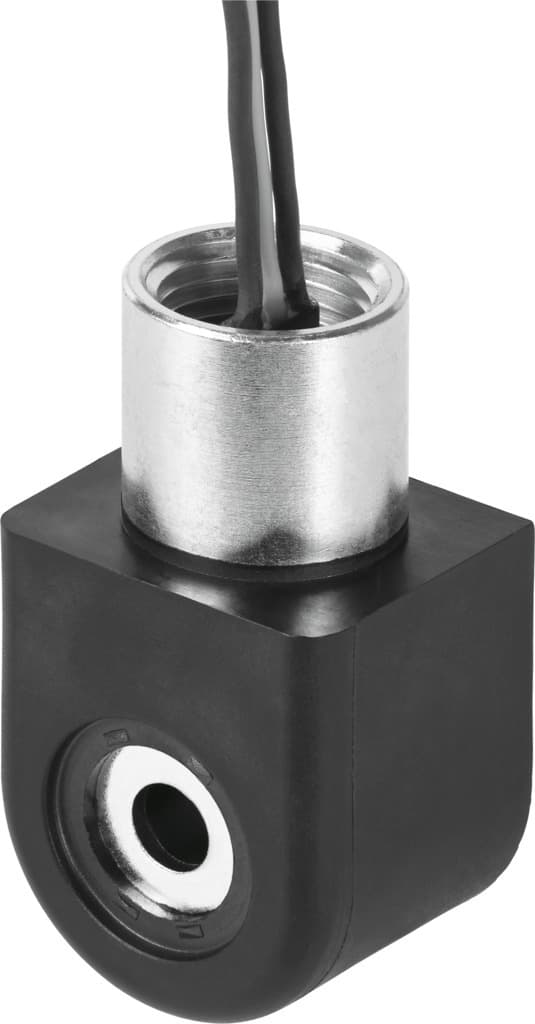

vacn-n-k11-16b-0.5-u4-m
Product ID:15359
Updated: 2026/7/4
Key Features
- 1Ensure reliable operation with electrical actuation.
- 2Support continuous use with a 100% duty cycle.
- 3Operate safely in hazardous areas with AEx m II T4 and Ex m II T4 protection.
- 4Provide excellent insulation via class H and enamelled wire class H.
- 5Withstand diverse conditions from -20°C to +60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Duty cycle | 100% | Insulation class | H |
| Enameled wire insulation class | H | Coil characteristics | 120 V AC: 60 Hz, initial power 10.0 VA, holding power 6.8 VA |
| Permissible voltage fluctuations | +/- 10 % | Maritime classification | See certificate |
| Explosion protection certification outside the EU | Class I, Div. 1 (CA) Class I, Div. 1 (US) Class I, Div. 2 (CA) Class II, Div. 1 (CA) Class II, Div. 1 (US) Class III, Div. 1 (CA) Class III, Div. 1 (US) EPL Gb (US) | Explosion prevention and protection | Class I, Div. 1 (CA) Class I, Div. 1 (US) Class I, Div. 2 (CA) Class II, Div. 1 (CA) Class II, Div. 1 (US) Class III, Div. 1 (CA) Class III, Div. 1 (US) Zone 1 (US) |
| Certificate issuing authority | CSA 265489 DNV TAA000011J FM 3053936 | Type of ignition protection for gas | AEx m II T4 Ex m II T4 |
| Explosive ambient temperature | -20°C <= Ta <= +60°C | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
| Ambient temperature | -20°C 60°C | Product weight | 207g |
| Electrical connection | Cable | Cable length | 0.61m |
| Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
| Housing material | Polymer Steel | Material of winding | Copper |
| Manufacturer ID | 8029145 |
Specifications may be subject to change without notice
