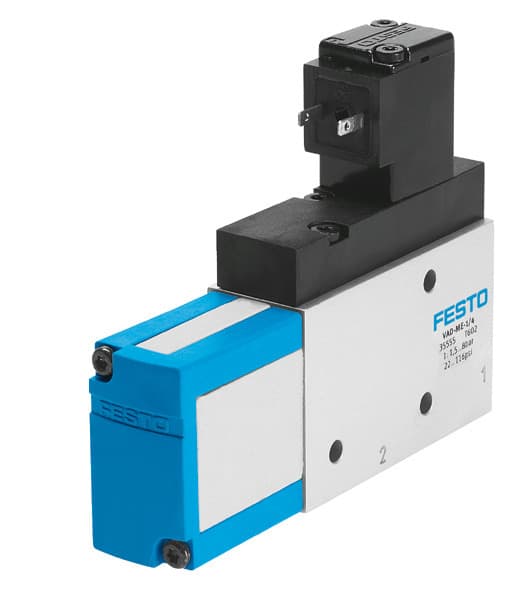

Key Features
- 1Deliver high vacuum ejector characteristics for demanding applications. 2、Allow optional mounting positions for flexible installation. 3、Integrate an electric on-off valve for convenient control. 4、Feature a T-shape design for easy system integration. 5、Operate on compressed air to ISO 8573-1:2010 for reliable performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Mounting position | Any |
| Ejector characteristics | High vacuum | Integrated function | Shut off valve, electric |
| Structural design | T-shape | Symbol | 00991492 |
| Operating pressure | 1.5bar 8bar | Max. vacuum | 85% |
| Duty cycle | 100% | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | LABS (PWIS) conformity | VDMA24364-B2-L |
| Temperature of medium | 0°C 40°C | Degree of protection | IP65 |
| Ambient temperature | 0°C 40°C | Product weight | 212g |
| Electrical connection | Plug | Type of mounting | With internal thread |
| Pneumatic connection 1 | G1/8 | Vacuum connection | G1/4 |
| Housing material | Aluminum | Manufacturer ID | 35555 |
Specifications may be subject to change without notice
