Key Features
- 1Achieve high vacuum performance for demanding industrial applications.
- 2Control operations precisely with the integrated electric ejector pulse valve.
- 3Install flexibly using the optional mounting positions for your system.
- 4Optimize performance with the compact 1.4 mm Laval nozzle design.
- 5Ensure reliable operation with Festo's precision engineering and quality.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Mounting position | Any |
| Ejector characteristics | High vacuum | Integrated function | Ejector pulse valve, electric Shut off valve, electric |
| Structural design | T-shape | Symbol | 00991493 |
| Operating pressure | 1.5bar 8bar | Max. vacuum | 90% |
| Duty cycle | 100% | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | LABS (PWIS) conformity | VDMA24364-B2-L |
| Temperature of medium | 0°C 50°C | Degree of protection | IP65 |
| Ambient temperature | 0°C 50°C | Electrical connection | Plug |
| Type of mounting | With internal thread | Pneumatic connection 1 | G1/8 |
| Vacuum connection | G1/4 | Housing material | Aluminum |
| Manufacturer ID | 35532 |
Specifications may be subject to change without notice

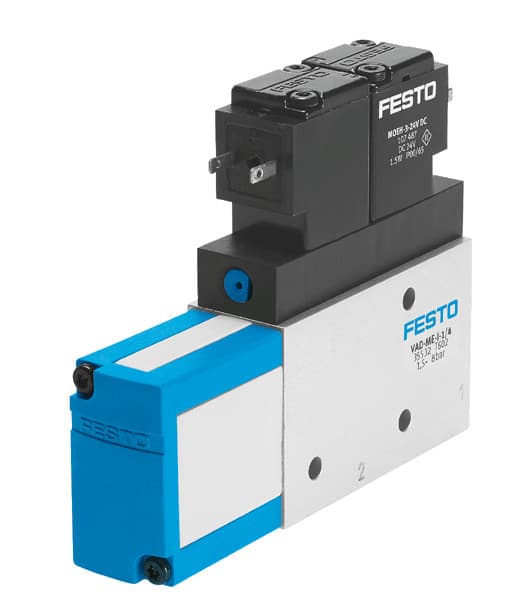

Still deciding on vad-me-i-1/4?
