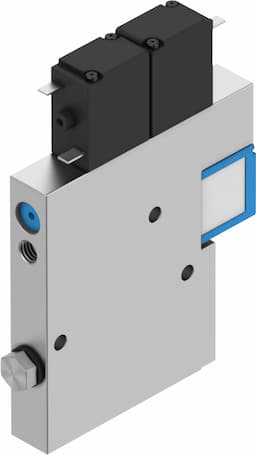

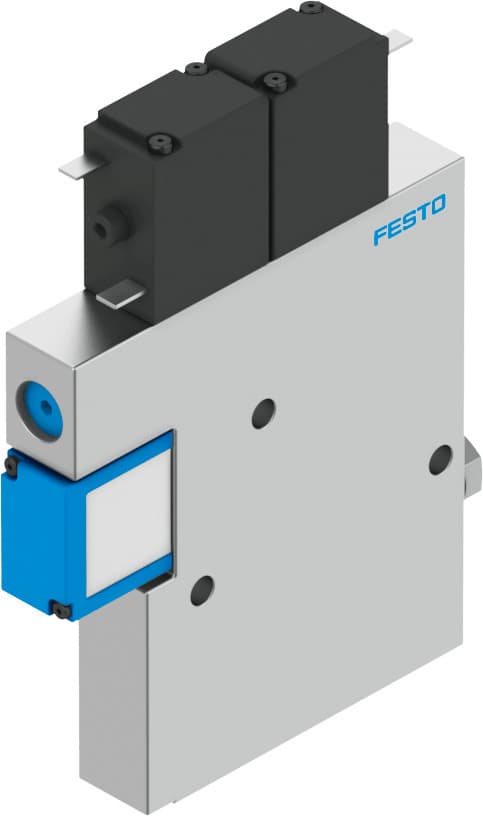

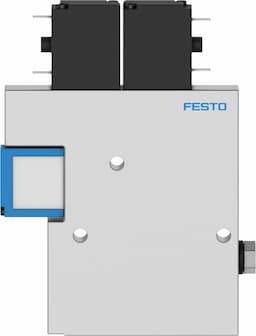

Key Features
- 1Maximize vacuum efficiency up to 85% with a compact, single-stage design. 2、Simplify installation and control using the integrated solenoid valve and filter. 3、Reduce operational costs via the optional air-saving function and sensor. 4、Ensure durable performance in harsh conditions with IP65 protection. 5、Achieve reliable workpiece handling with a wide 0-60°C operating range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.45mm | Width dimension | 10mm |
| Muffler construction type | Closed | Mounting position | Any |
| Ejector characteristics | High vacuum | Grade of filtration | 40μm |
| Manual override | Non-detenting | Integrated function | Ejector pulse valve, electric Flow control Shut off valve, electric Compressed air filter Non-return valve |
| Symbol | 00991305 | Valve function | Closed |
| Operating pressure | 21.75psi 116psi | Max. vacuum | 85% |
| Nominal operating pressure | 87psi | Air supply time at nominal operating pressure with ejector pulse | 1.9s |
| DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
| Certification | c UL us - Recognized (OL) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
| Product weight | 85g | Electrical connection | Plug |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection 1 | M5 |
| Pneumatic connection 3 | Pneumatic muffler integrated | Vacuum connection | M5 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | Brass, nickel-plated | Compressed air filter material | PA |
| Material of filter housing | PC | Housing material | Wrought aluminum alloy |
| Muffler material | PE POM | Material of piston | POM |
| Material of jet nozzle | Brass, nickel-plated | Manufacturer ID | 162506 |
Specifications may be subject to change without notice
