Key Features
- 1Deliver high vacuum ejector performance for efficient suction.
- 2Offer optional mounting positions for flexible installation.
- 3Integrate an electric on-off valve for precise vacuum control.
- 4Feature a durable T-shape construction for enhanced reliability.
- 5Ensure reliable operation with ISO 8573-1:2010 [7:4:4] compressed air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Mounting position | Any |
| Ejector characteristics | High vacuum | Integrated function | Shut off valve, electric |
| Structural design | T-shape | Symbol | 00991492 |
| Operating pressure | 1.5bar 8bar | Max. vacuum | 85% |
| Duty cycle | 100% | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | 0°C 40°C |
| Degree of protection | IP65 | Ambient temperature | 0°C 40°C |
| Product weight | 80g | Electrical connection | Plug |
| Type of mounting | With internal thread | Pneumatic connection 1 | M5 |
| Vacuum connection | G1/8 | Housing material | Aluminum |
| Manufacturer ID | 35553 |
Specifications may be subject to change without notice

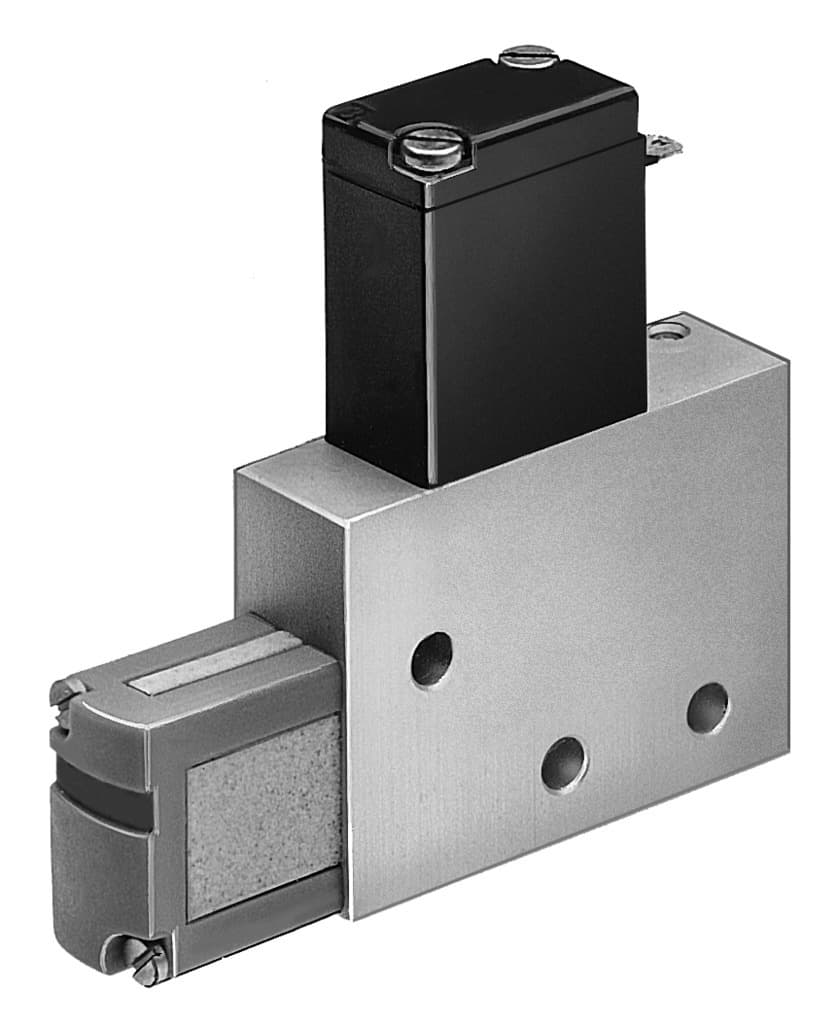

Still deciding on vad-myb-1/8?
