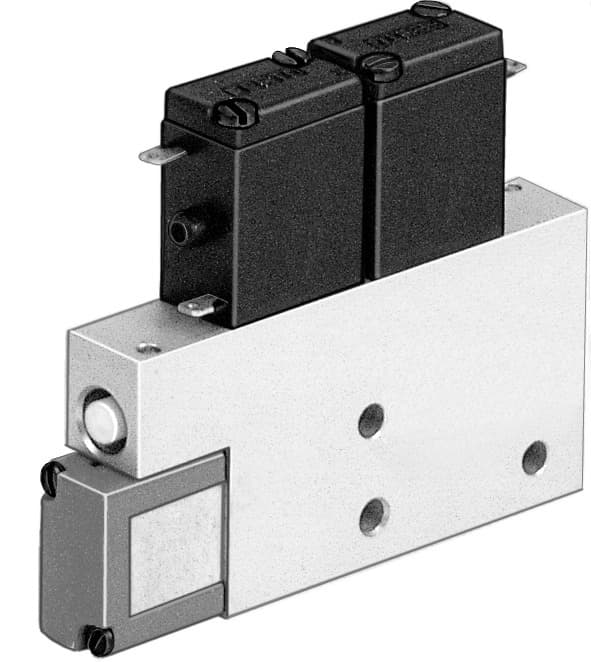

Key Features
- 1Deliver high vacuum levels for demanding industrial applications. 2、Integrate an electric ejector pulse valve for precise control. 3、Construct with sturdy aluminum for durability and long life. 4、Offer optional mounting positions for easy system integration. 5、Operate with ISO 8573-1:2010 compliant compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Mounting position | Any |
| Ejector characteristics | High vacuum | Integrated function | Ejector pulse valve, electric Shut off valve, electric |
| Structural design | T-shape | Symbol | 00991493 |
| Operating pressure | 1.5bar 8bar | Max. vacuum | 90% |
| Duty cycle | 100% | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | LABS (PWIS) conformity | VDMA24364-B2-L |
| Temperature of medium | 0°C 50°C | Degree of protection | IP65 |
| Ambient temperature | 0°C 50°C | Electrical connection | Plug |
| Type of mounting | With internal thread | Pneumatic connection 1 | M5 |
| Vacuum connection | G1/8 | Housing material | Aluminum |
| Manufacturer ID | 35530 |
Specifications may be subject to change without notice
