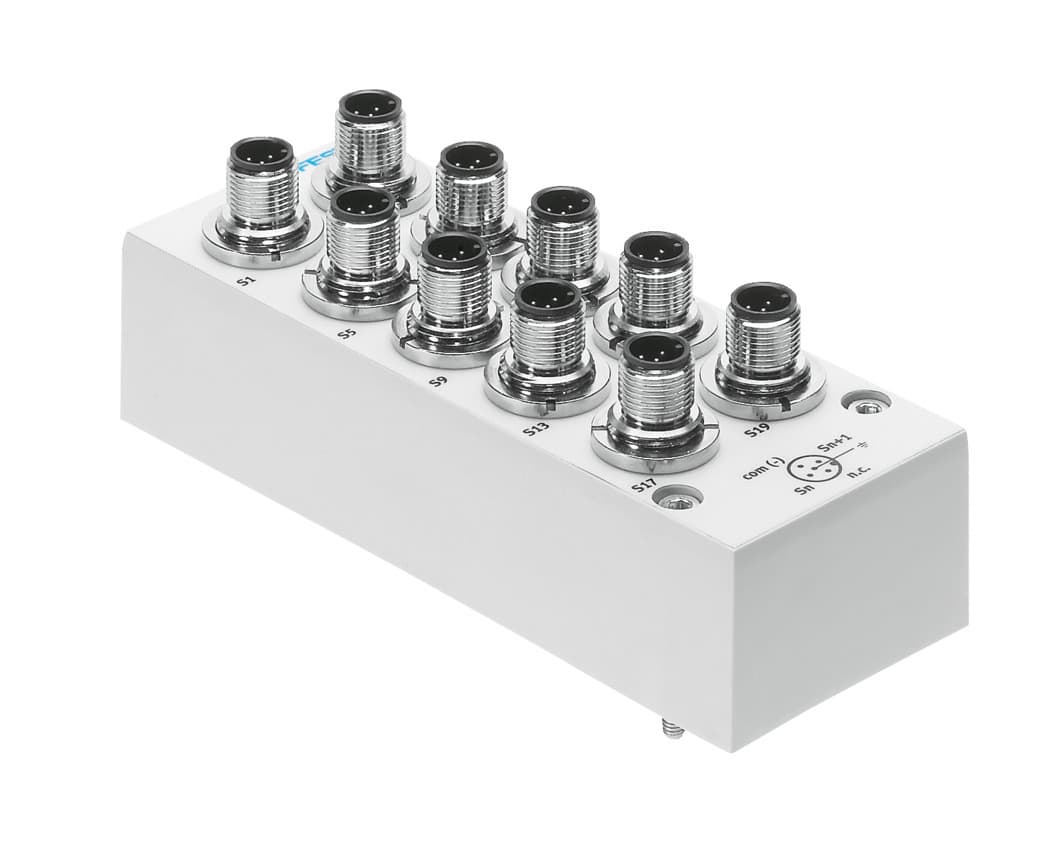

vaem-s6-c-s10-r5
Product ID:11647
Updated: 2026/7/4
Key Features
- 1Support 10 bistable and 20 monostable valve positions for versatile applications.
- 2Ensure reliable 24V DC operation with +/-10% voltage tolerance.
- 3Withstand harsh conditions with IP65/NEMA 4 and corrosion resistance.
- 4Facilitate easy integration via 10 electrical M12 plug connections.
- 5Operate consistently from -5°C to 50°C ambient temperature.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Max. no. of valve positions | 10 for bistable pneumatic valves 20 for monostable pneumatic valves | Max. residual current | 10A |
| Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 230g | Number of electrical connections | 10 |
| Electrical connection | 5-pin M12 Plug | Housing material | PA |
| Manufacturer ID | 549049 |
Specifications may be subject to change without notice
