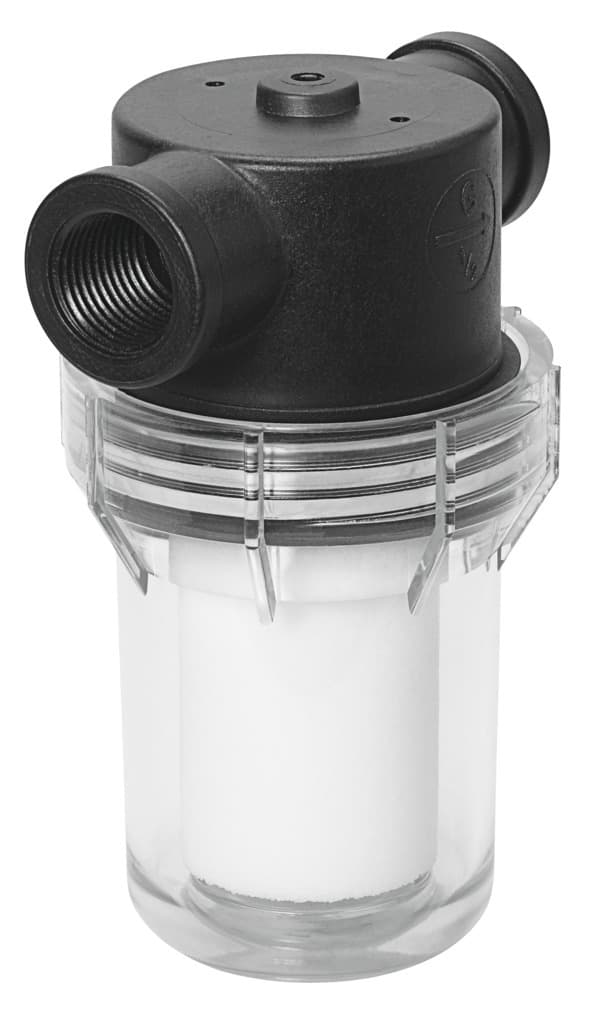

vaf-db-1/4
Product ID:11507
Updated: 2026/4/3
Key Features
- 1Install vertically for easy integration into pneumatic systems. 2、Filter contaminants effectively with an 80 μm grade. 3、Operate reliably within a -0.95 to 0 bar pressure range. 4、Ensure durability with RoHS-compliant NBR seals and PE filter. 5、Mount in-line via wall or surface brackets for design flexibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Vertical | Grade of filtration | 80μm |
| Symbol | 00991483 | Operating pressure | -0.95bar 0bar |
| Information on operating pressure | Only for use in open vacuum systems | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | Ambient temperature | -5°C 50°C |
| Max. tightening torque | 8.7Nm | Product weight | 71g |
| Type of mounting | Line installation With wall/surface bracket | Pneumatic connection | G1/4 |
| Vacuum connection | G1/4 | Note on materials | RoHS-compliant |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | PP-reinforced | Material of bowl | PA |
| Ejector pulse suitability | 7bar | Manufacturer ID | 547261 |
Specifications may be subject to change without notice
