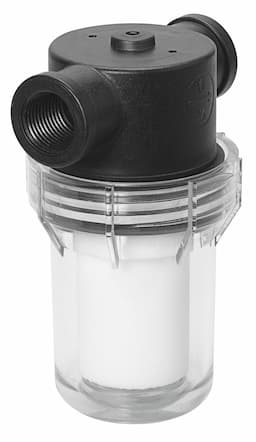

vaf-db-3/8
Product ID:12048
Updated: 2026/4/3
Key Features
- 1Provide high-grade 80 µm filtration for clean system air. 2、Mount vertically or via brackets for flexible installation. 3、Utilize RoHS-compliant materials for durability and corrosion resistance. 4、Operate in open vacuum systems from -0.95 to 0 bar. 5、Weigh only 156 grams for compact, space-saving applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Vertical | Grade of filtration | 80μm |
| Symbol | 00991483 | Operating pressure | -0.95bar 0bar |
| Information on operating pressure | Only for use in open vacuum systems | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | Ambient temperature | -5°C 50°C |
| Max. tightening torque | 15.3Nm | Product weight | 156g |
| Type of mounting | Line installation With wall/surface bracket | Pneumatic connection | G3/8 |
| Vacuum connection | G3/8 | Note on materials | RoHS-compliant |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | PP-reinforced | Material of bowl | PA |
| Ejector pulse suitability | 7bar | Manufacturer ID | 553140 |
Specifications may be subject to change without notice
