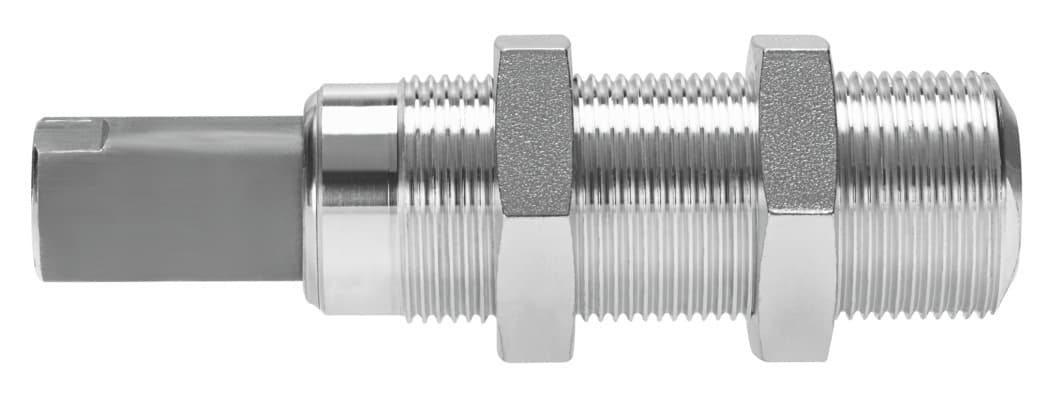

val-m5-5
Product ID:2280
Updated: 2026/7/4
Key Features
- 1Adjust vacuum cup height by 5mm for optimal grip.
- 2Integrate easily with top vacuum connection.
- 3Ensure durability with aluminum housing.
- 4Meet RoHS compliance for Li-ion battery production.
- 5Install flexibly using M16x1 external thread.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 5mm | Mounting position | Any |
| Structural design | Vacuum connection at top | Operating pressure | -0.95bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -10°C 60°C | Product weight | 25g |
| Type of mounting | With external thread M16x1 | Suction cup mounting | M5 |
| Vacuum connection | M5 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Aluminum |
| Retaining bracket material | Aluminum POM High-alloy stainless steel | Manufacturer ID | 151209 |
Specifications may be subject to change without notice
