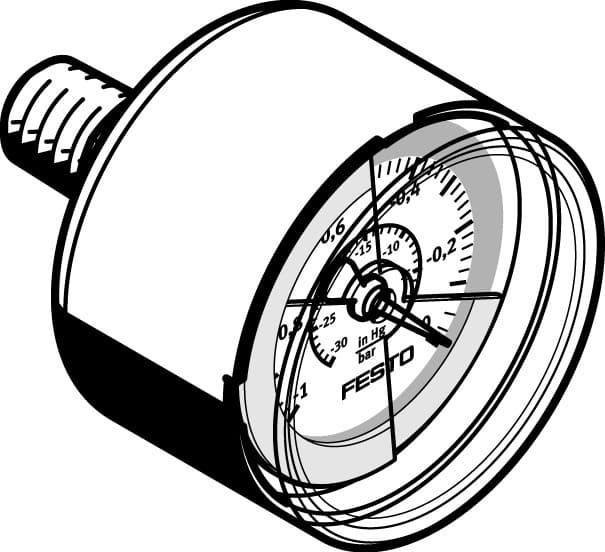

vam-40-v1/0-r1/8-e-rg
Product ID:11558
Updated: 2026/4/3
Key Features
- 1Ensure precise readings with a 2.5 accuracy class. 2、Mount in any position for flexible front panel or line installation. 3、Comply with DIN EN 837-1 standards for quality and safety. 4、Rely on durable ABS housing and brass construction. 5、Operate with compressed air per ISO8573-1:2010 [7:4:4].
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pressure gauge nominal size | 40 | Connection position | Centered on rear side |
| Based on norm | DIN EN 837-1 | Type of seal on screwed plug | Coating |
| Mounting position | Any | Structural design | Bourdon tube pressure gauge |
| Symbol | 00991463 | Display range | -1bar 0bar |
| Scale | Single scale | Operating pressure | -1bar 0bar |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Continuous load factor | 0.75 |
| Intermittent load factor | 0.66 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -20°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 65g |
| Measurement accuracy class | 2.5 | Type of mounting | Screw-in |
| Pneumatic connection | R1/8 | Material of screwed plug | Brass |
| Housing material | ABS | Segments material | PS |
| Inspection window material | PS | Manufacturer ID | 547842 |
Specifications may be subject to change without notice
