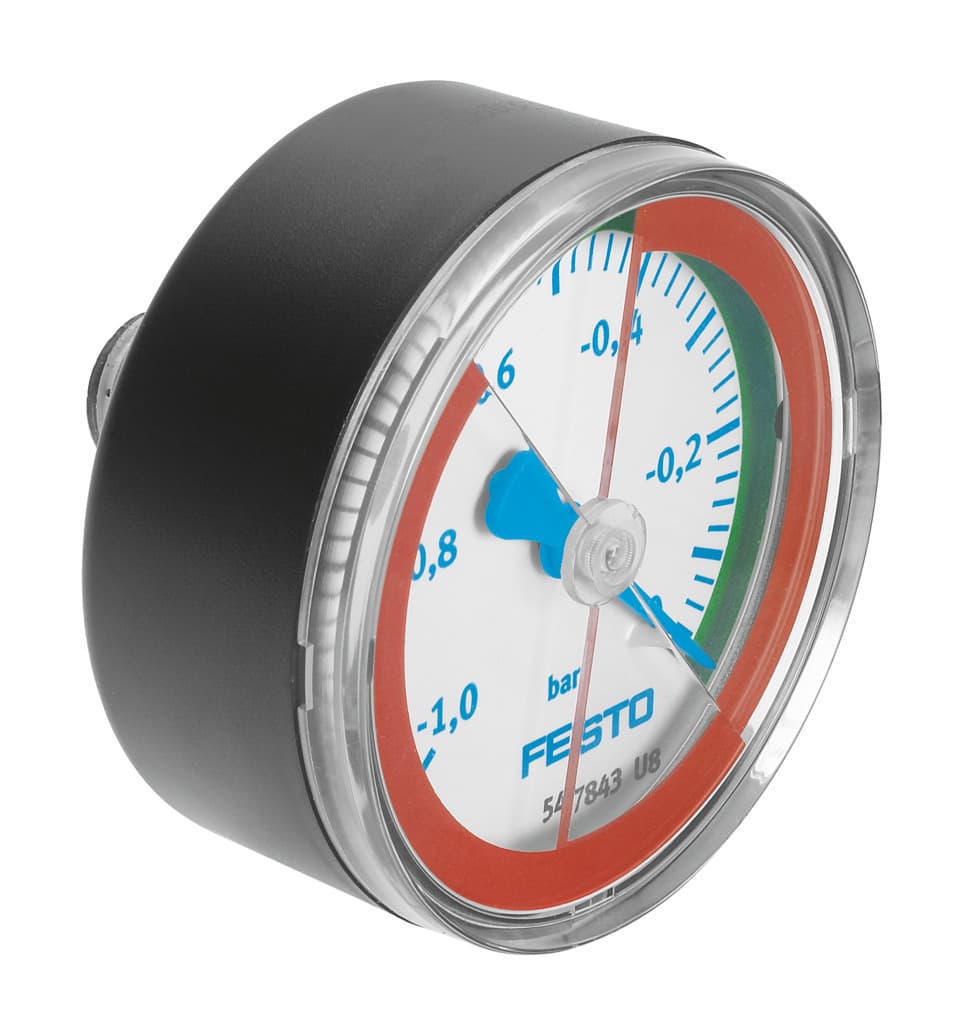

vam-63-v1/0-r1/4-e-rg
Product ID:11559
Updated: 2026/7/13
Key Features
- 1Ensure precise pressure measurement with a 63mm nominal size.
- 2Simplify installation via a rear-side central connection.
- 3Meet DIN EN 837-1 standards for guaranteed reliability.
- 4Operate with lubricated compressed air per ISO 8573-1:2010.
- 5Achieve optimal performance in diverse industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pressure gauge nominal size | 63 | Connection position | Centered on rear side |
| Based on norm | DIN EN 837-1 | Type of seal on screwed plug | Coating |
| Mounting position | Any | Structural design | Bourdon tube pressure gauge |
| Symbol | 00991463 | Display range | -1bar 0bar |
| Scale | Single scale | Operating pressure | -1bar 0bar |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Continuous load factor | 0.75 |
| Intermittent load factor | 0.66 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -20°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 90g |
| Measurement accuracy class | 2.5 | Type of mounting | Screw-in |
| Pneumatic connection | R1/4 | Material of screwed plug | Brass |
| Housing material | ABS | Segments material | PS |
| Inspection window material | PS | Manufacturer ID | 547843 |
Specifications may be subject to change without notice
