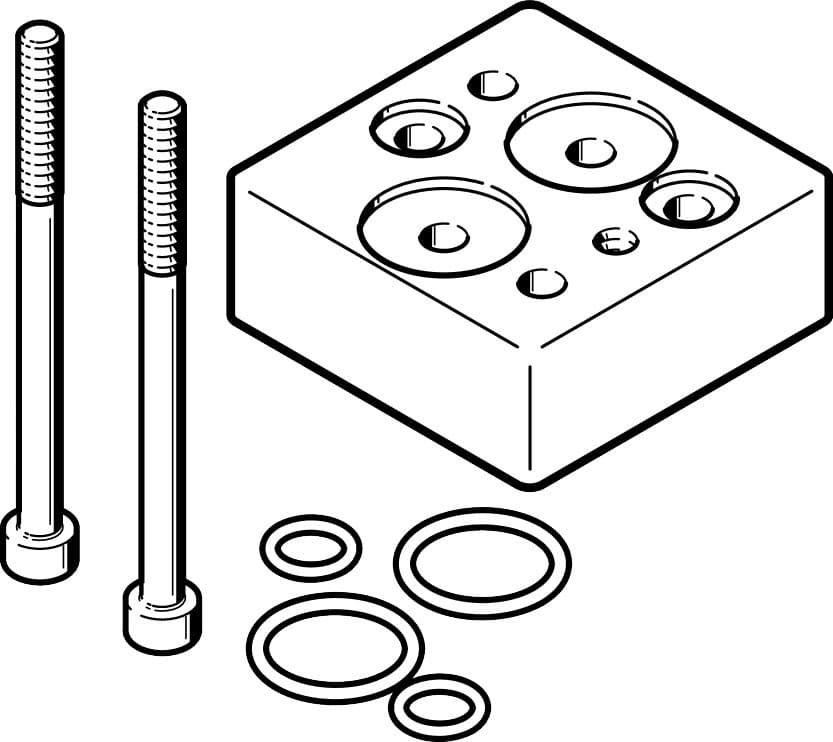

vame-s7-p-n-v14-a
Product ID:8290
Updated: 2026/4/3
Key Features
- 1Deploy in hazardous Zone 1 (ATEX) environments for explosion protection. 2、Support operating pressures up to 1 MPa (10 bar) for versatile pneumatic applications. 3、Ensure high durability with corrosion resistance class CRC 4 in demanding conditions. 4、Accommodate various port patterns with M5, G1/4, and 1/4" flange connections. 5、Utilize RoHS-compliant, ematal-coated aluminum for environmental sustainability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Operating pressure | 0psi 145psi |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP65 | Type of mounting | With through-hole |
| Pneumatic connection 1 | M5 NAMUR connection diagram | Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram |
| Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
| Seals material | NBR | Plate material | Aluminum, ematal coated |
| Manufacturer ID | 3581412 |
Specifications may be subject to change without notice
