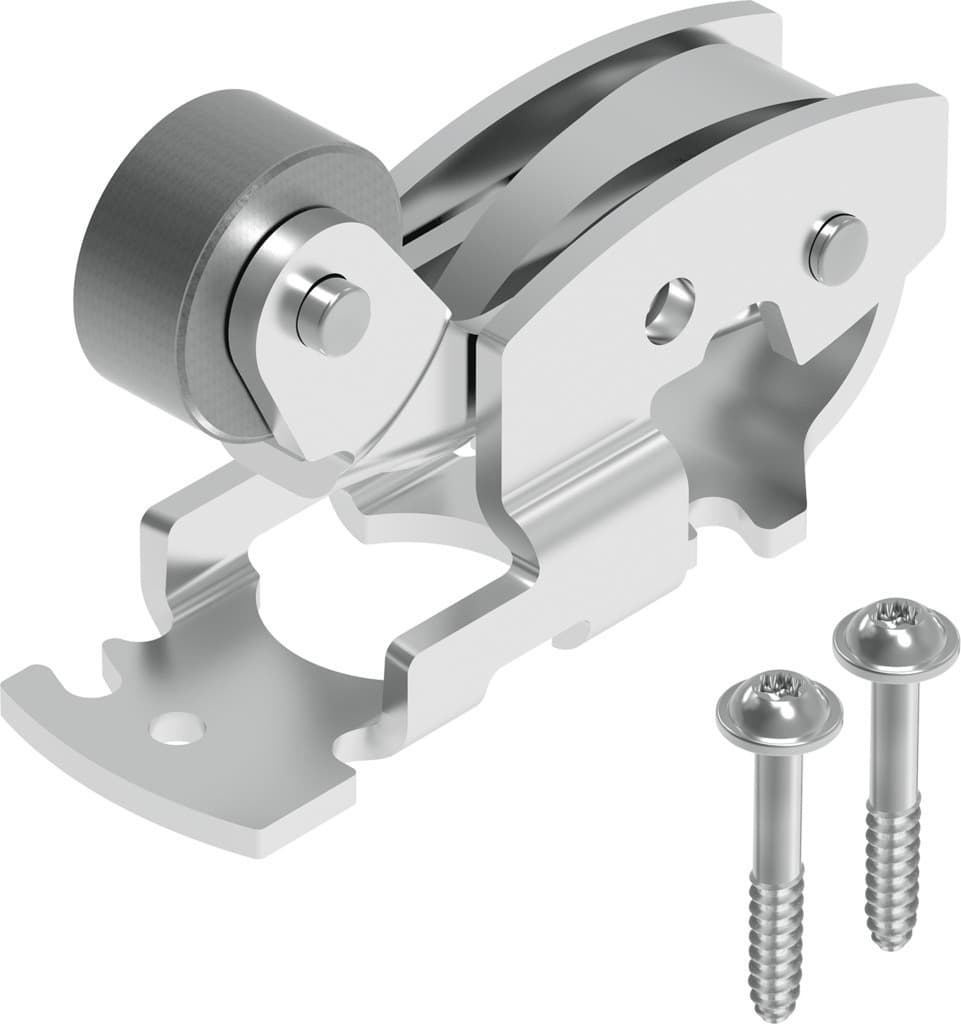

vaom-r4-20-d1-52
Product ID:16114
Updated: 2026/4/3
Key Features
- 1Control pneumatic valves with direct, precise mechanical movement. 2、Reduce corrosion stress significantly with CRC class 1 protection. 3、Save panel space using the compact 20 mm width design. 4、Utilize environmentally friendly, RoHS-compliant construction materials. 5、Secure the valve attachment firmly with screw-clamped terminals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 20mm | Actuation type | Mechanical |
| Mounting position | Movement plane | Structural design | Roller lever |
| Type of control | Direct | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Type of mounting | Screwed tightly | Note on materials | RoHS-compliant |
| Actuator attachments material | Steel, galvanized | Manufacturer ID | 8049233 |
Specifications may be subject to change without notice
