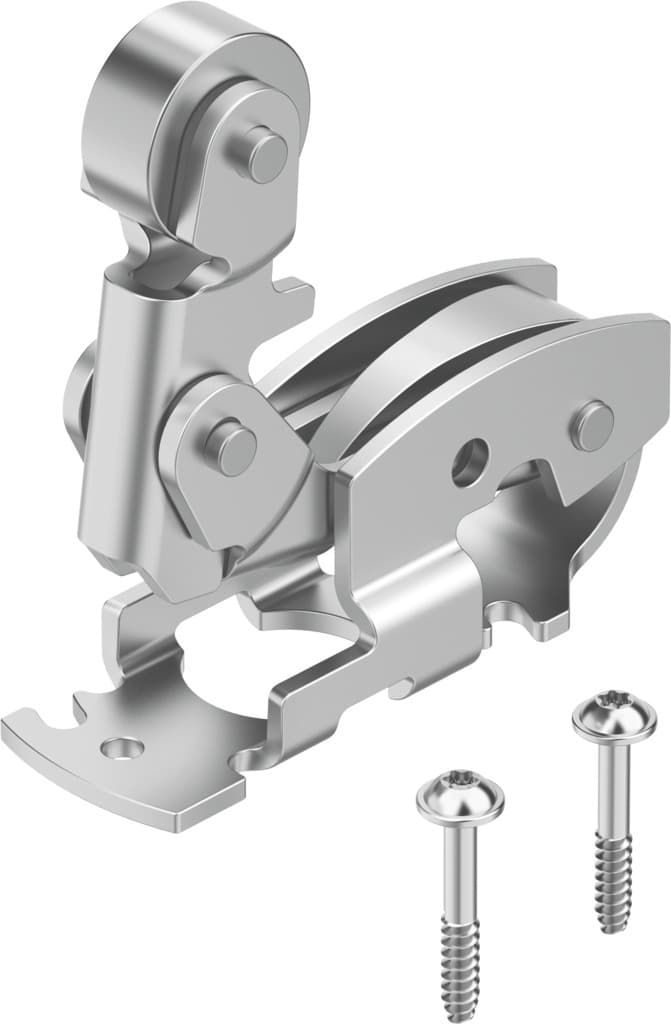

vaom-r4-20-d2-52
Product ID:16116
Updated: 2026/7/4
Key Features
- 1Ensure precise control with mechanical actuation.
- 2Achieve efficient movement via direct piloting.
- 3Withstand harsh conditions using CRC 1 corrosion resistance.
- 4Operate reliably across a -10°C to 60°C temperature range.
- 5Meet environmental standards with RoHS compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 20mm | Actuation type | Mechanical |
| Mounting position | Movement plane | Structural design | One-way roller lever |
| Type of control | Direct | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Type of mounting | Screwed tightly | Note on materials | RoHS-compliant |
| Actuator attachments material | Steel, galvanized | Manufacturer ID | 8049236 |
Specifications may be subject to change without notice
