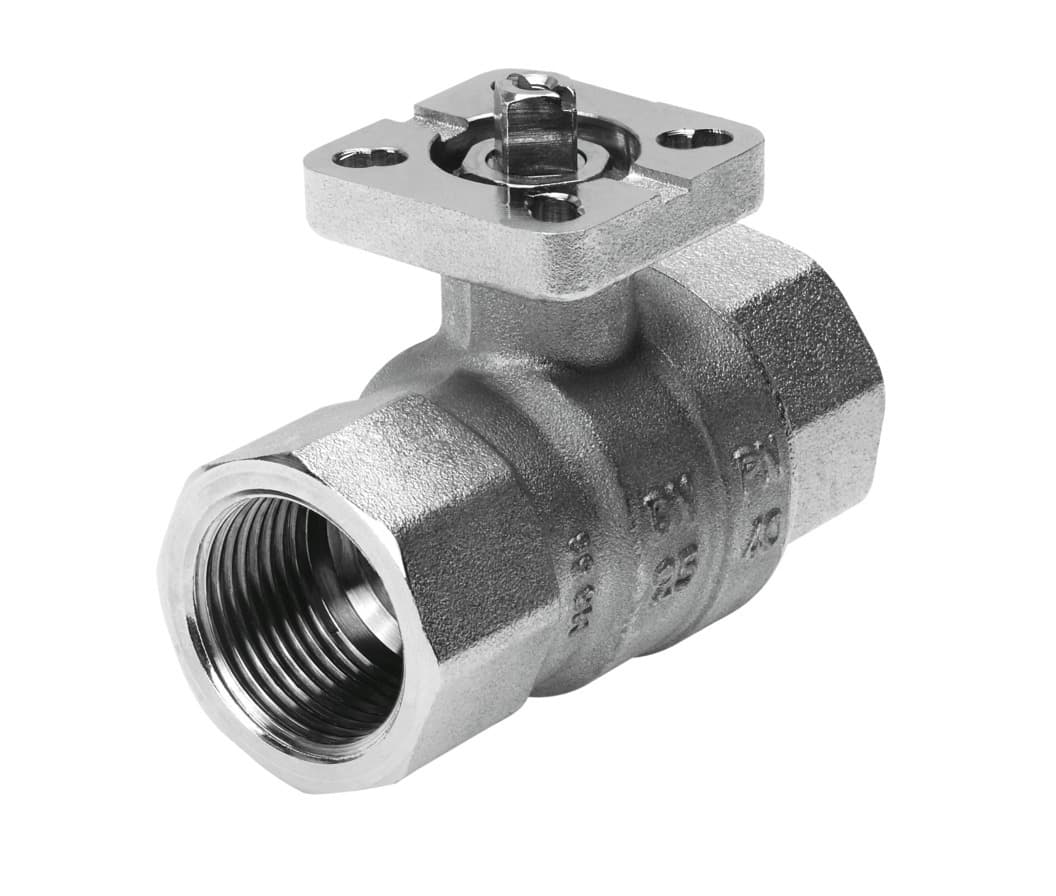

vapb-1/4-f-40-f03
Product ID:9747
Updated: 2026/4/3
Key Features
- 1Enable reversible flow direction for flexible system operation. 2、Ensure leak-free sealing with a soft sealing principle. 3、Guarantee compatibility via ISO 5211 standard design. 4、Handle compressed air, inert gases, and neutral fluids. 5、Resist corrosion with brass and plated components.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | 2-way ball valve | Actuation type | Mechanical |
| Sealing principle | Soft | Mounting position | Any |
| Type of mounting | Line installation | Fitting connection | Rp1/4 |
| Switching position indication | Slot direction = flow direction | Flange hole pattern | F03 |
| Nominal width DN | 15 | Flow direction | Reversible |
| Nominal pressure of fitting PN | 40 | Breakaway torque at differential pressure, nominal pressure, fitting PN | 5Nm |
| Breakaway torque at 10 bar differential pressure | 3.5Nm | Based on norm | ISO 5211 |
| Symbol | 00991458 | Medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas Water Neutral liquids |
| Temperature of medium | -20°C 150°C | Flow rate Kv | 5.9m3/h |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364 zone III |
| Housing material | Brass, nickel-plated | Material number of housing | 2.0402 CW617N |
| Seat seal material | PTFE | Seals material | HNBR PTFE |
| Ball material | Brass Hard-chrome-plated | Material number for ball | 2.0401 CW614N |
| Shaft material | Brass | Material number for shaft | 2.0401 CW614N |
| Product weight | 500g | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Manufacturer ID | 534302 |
Specifications may be subject to change without notice
