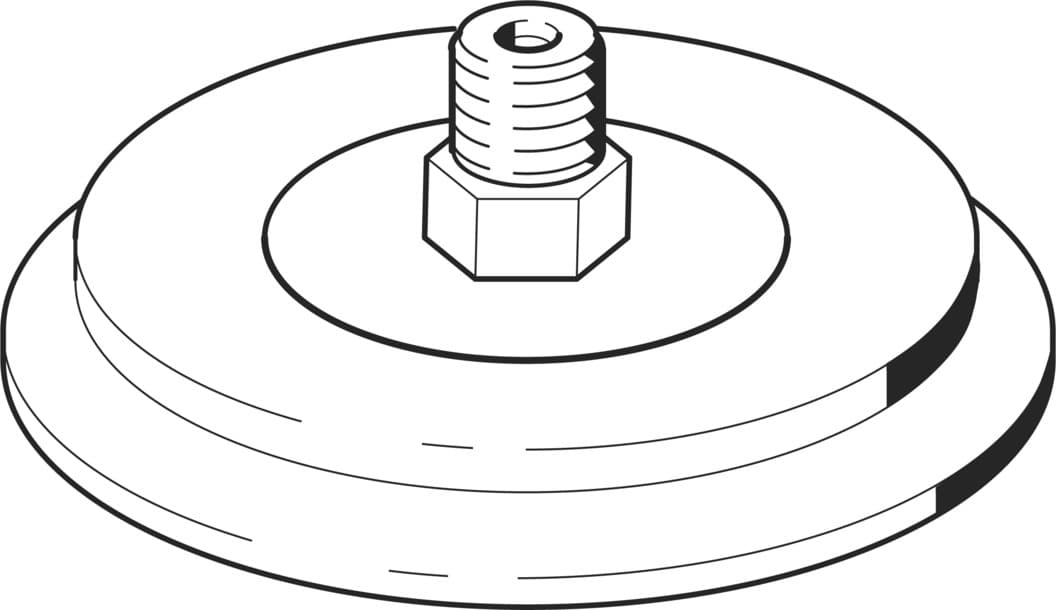

vas-100-1/4-si-b
Product ID:1524
Updated: 2026/4/3
Key Features
- 1Ensure precise height compensation for stable part handling. 2、Integrate sensors for real-time process monitoring and control. 3、Seamlessly connect with other Festo automation system components. 4、Rely on robust construction for durability in harsh industrial environments. 5、Access comprehensive support for easy integration and troubleshooting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 3.5mm | Nominal width | 4mm |
| Suction cup diameter | 100mm | Suction cup volume | 33.5cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 464N |
| Product weight | 116g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Transparent |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 1386376 |
Specifications may be subject to change without notice
