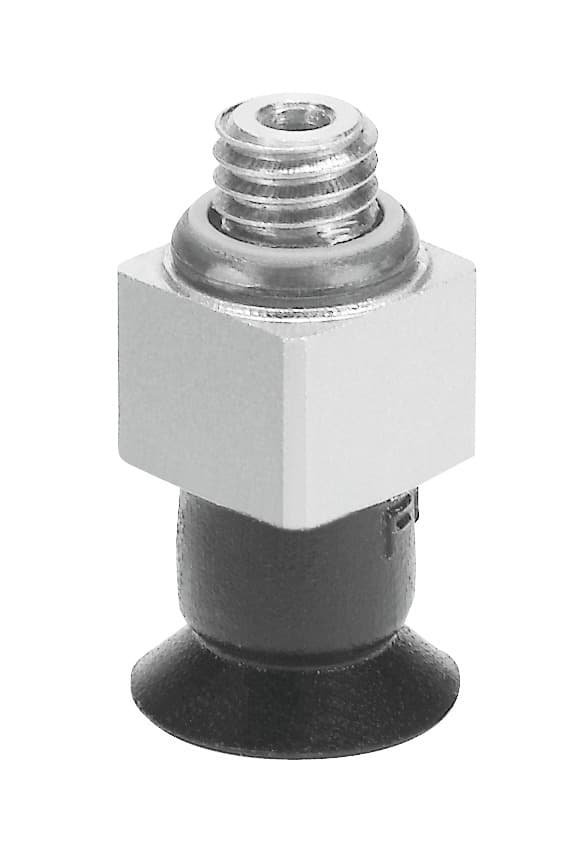

vas-10-m5-nbr
Product ID:5178
Updated: 2026/4/3
Key Features
- 1Ensure precise handling with a 10mm diameter, round flat bellows. 2、Connect easily via the integrated M5 threaded pneumatic port. 3、Operate reliably in temperatures from -20°C to 80°C. 4、Achieve consistent 4.5N holding and breakaway force. 5、Utilize durable NBR and aluminum construction meeting RoHS.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2mm | Suction cup diameter | 10mm |
| Effective suction cup diameter | 8mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 4.5N |
| Holding force at nominal operating pressure | 4.5N | Mounting thread | M5 |
| Suction cup mounting | M5 | Vacuum connection | M5 |
| Color | Black | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 173440 |
Specifications may be subject to change without notice
