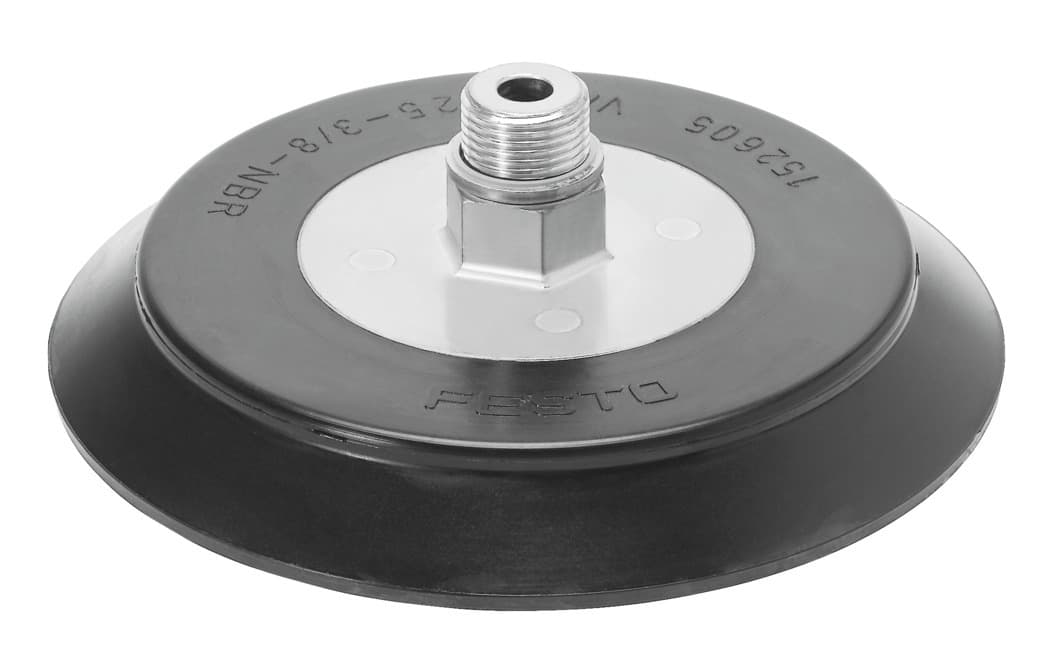

vas-125-3/8-nbr
Product ID:2331
Updated: 2026/7/4
Key Features
- 1Secure 606N holding force for reliable workpiece handling.
- 2Utilize durable NBR material for extended service life.
- 3Handle diverse shapes and surfaces with versatile application.
- 4Achieve precise positioning with the 125mm flat pad design.
- 5Ensure reliable performance from the trusted Festo brand.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 7mm | Suction cup diameter | 125mm |
| Effective suction cup diameter | 105mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 606N |
| Holding force at nominal operating pressure | 606N | Mounting thread | G3/8 |
| Suction cup mounting | G3/8 | Vacuum connection | G3/8 |
| Color | Black | Shore hardness | 70 +/- 5 |
| Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 152605 |
Specifications may be subject to change without notice
