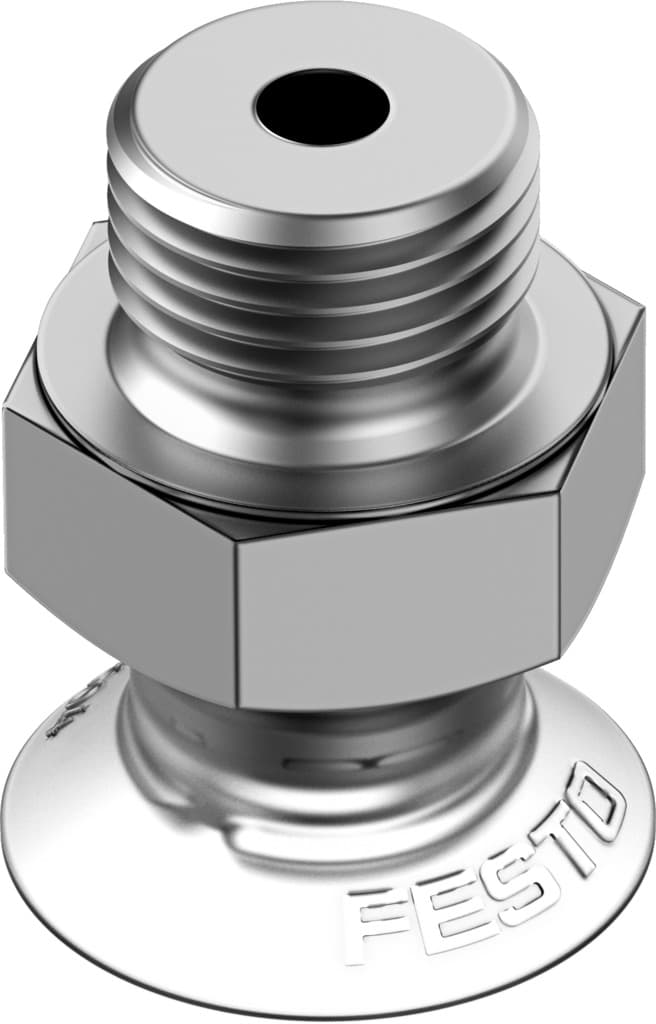

vas-15-1/8-si-b
Product ID:1417
Updated: 2026/7/4
Key Features
- 1Compensate for 1.2 mm height variations for consistent performance.
- 2Utilize a 15 mm diameter and 3 mm width for versatile handling.
- 3Achieve precise control with a suction cup volume of 0.328 cm³.
- 4Integrate easily via the top connection position.
- 5Enhance your automation line with Festo's reliable quality.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 1.2mm | Nominal width | 3mm |
| Suction cup diameter | 15mm | Suction cup volume | 0.328cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 8.5N |
| Product weight | 4g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/8 | Color | Transparent |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 1376604 |
Specifications may be subject to change without notice
