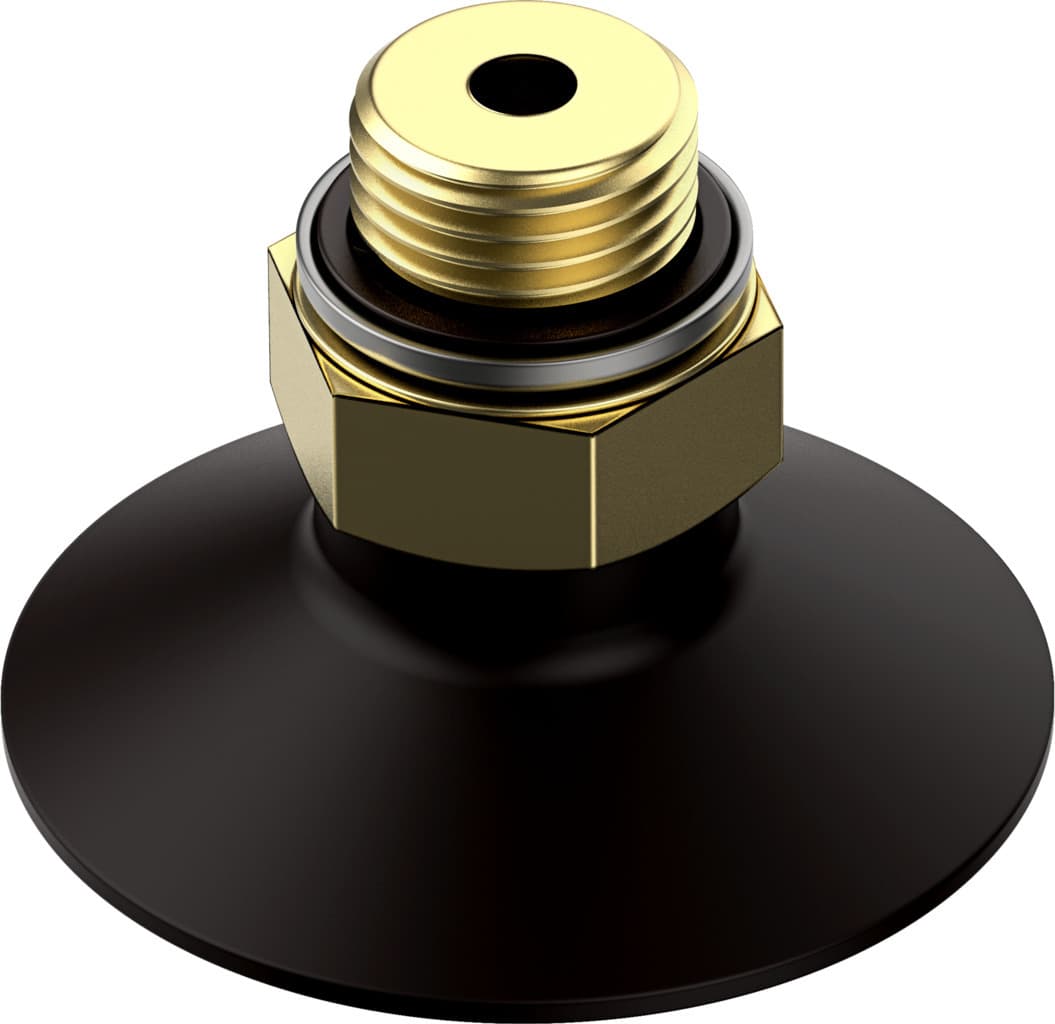

vas-30-1/8-nbr
Product ID:8227
Updated: 2026/4/3
Key Features
- 1Secure a durable vacuum connection with a 30mm NBR cup and G1/8 fitting. 2、Lift reliably with 34N breakaway and holding force for handling. 3、Operate in diverse conditions from -20°C to 80°C. 4、Meet high standards with RoHS compliance for sustainability. 5、Ensure reliable performance adhering to VDMA24364-A1-L standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 3mm | Suction cup diameter | 30mm |
| Effective suction cup diameter | 25mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 34N |
| Holding force at nominal operating pressure | 34N | Mounting thread | G1/8 |
| Suction cup mounting | G 1/8 | Vacuum connection | G1/8 |
| Color | Black | Shore hardness | 70 +/- 5 |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 34587 |
Specifications may be subject to change without notice
