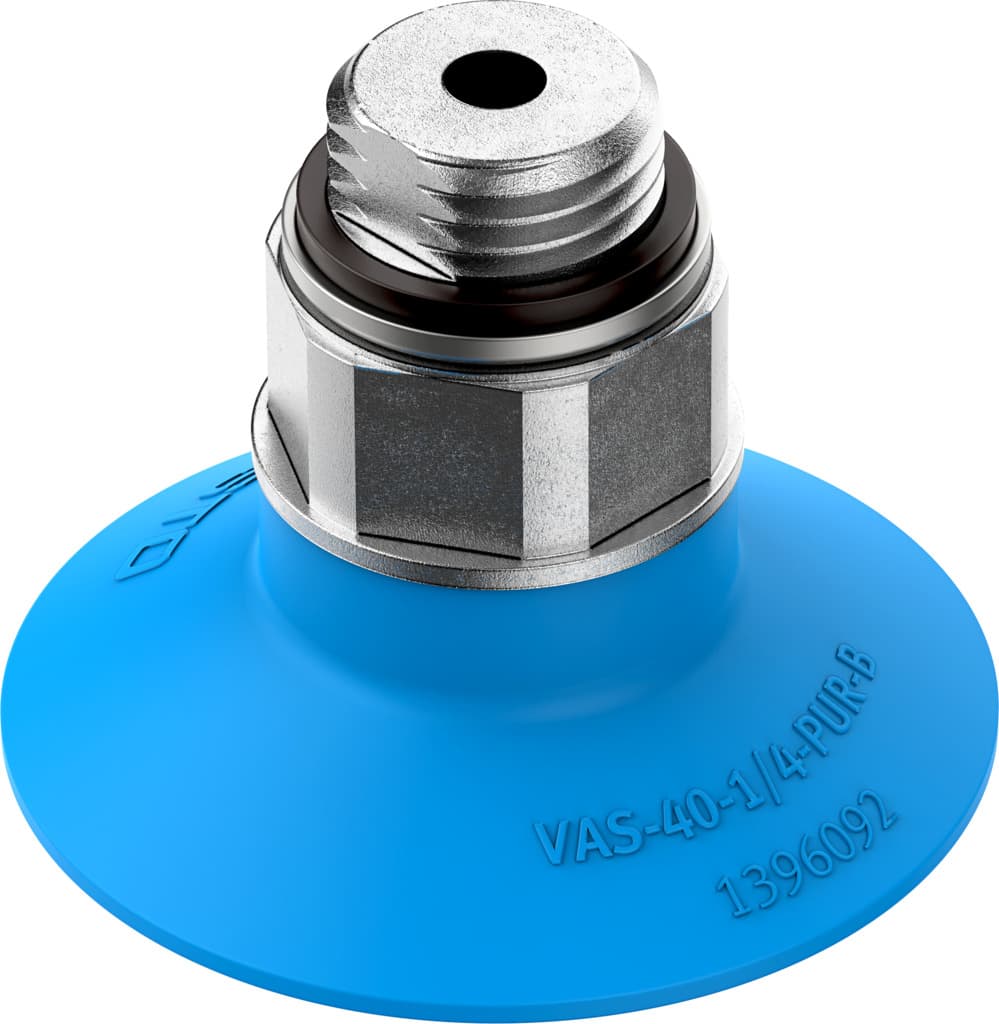

vas-40-1/4-pur-b
Product ID:1538
Updated: 2026/7/4
Key Features
- 1Ensure stable grip with a 3 mm height compensator.
- 2Achieve 60 N holding force at nominal pressure.
- 3Utilize a 40 mm diameter for a 34.4 mm effective area.
- 4Operate with ISO 8573-1:2010 atmospheric air.
- 5Resist corrosion with a CRC 2 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 3mm | Nominal width | 4mm |
| Suction cup diameter | 40mm | Suction cup volume | 3.47cm3 |
| Effective suction cup diameter | 34.4mm | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 60N |
| Product weight | 26g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Die-cast zinc |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 1396092 |
Specifications may be subject to change without notice
