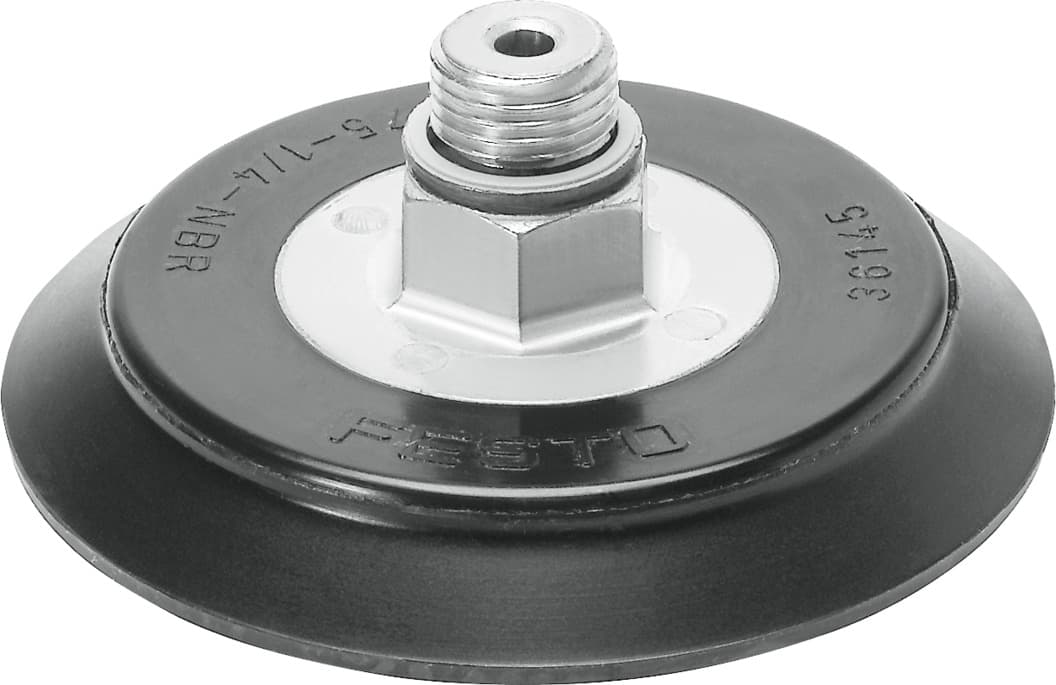

vas-75-1/4-nbr
Product ID:8302
Updated: 2026/7/4
Key Features
- 1Ensure precise handling with a 75 mm suction cup diameter.
- 2Provide robust grip using a 60 mm effective suction diameter.
- 3Offer flexibility with a round, flat bellows shape design.
- 4Enable easy integration via a 1/4" BSPP top connection.
- 5Guarantee reliable performance within a 0.095 MPa pressure range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 4mm | Suction cup diameter | 75mm |
| Effective suction cup diameter | 60mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 197N |
| Holding force at nominal operating pressure | 197N | Mounting thread | G? |
| Suction cup mounting | G 1/4 | Vacuum connection | G1/4 |
| Color | Black | Shore hardness | 70 +/- 5 |
| Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 36145 |
Specifications may be subject to change without notice
