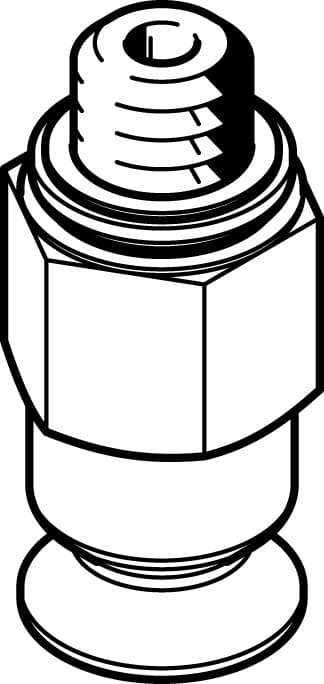

vas-8-m5-si-b
Product ID:1445
Updated: 2026/7/4
Key Features
- 1Grip securely with an 8 mm round flat silicone suction cup.
- 2Resist corrosion using durable VMQ material for harsh environments.
- 3Handle atmospheric air with a -0.7 bar nominal operating pressure.
- 4Achieve 2.60 N holding force at the nominal operating pressure.
- 5Connect flexibly with M5 vacuum connections for easy integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 0.9mm | Nominal width | 2mm |
| Suction cup diameter | 8mm | Suction cup volume | 0.095cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 2.6N |
| Product weight | 2g | Type of mounting | Via vacuum connection |
| Vacuum connection | M5 | Color | Transparent |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 1377781 |
Specifications may be subject to change without notice
