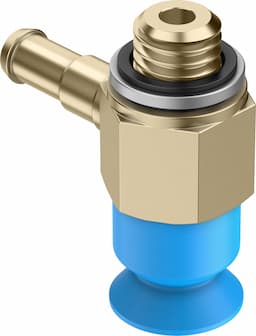

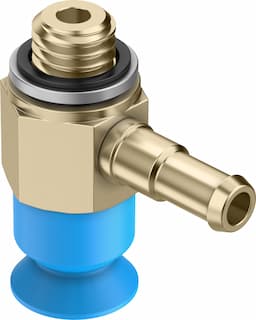

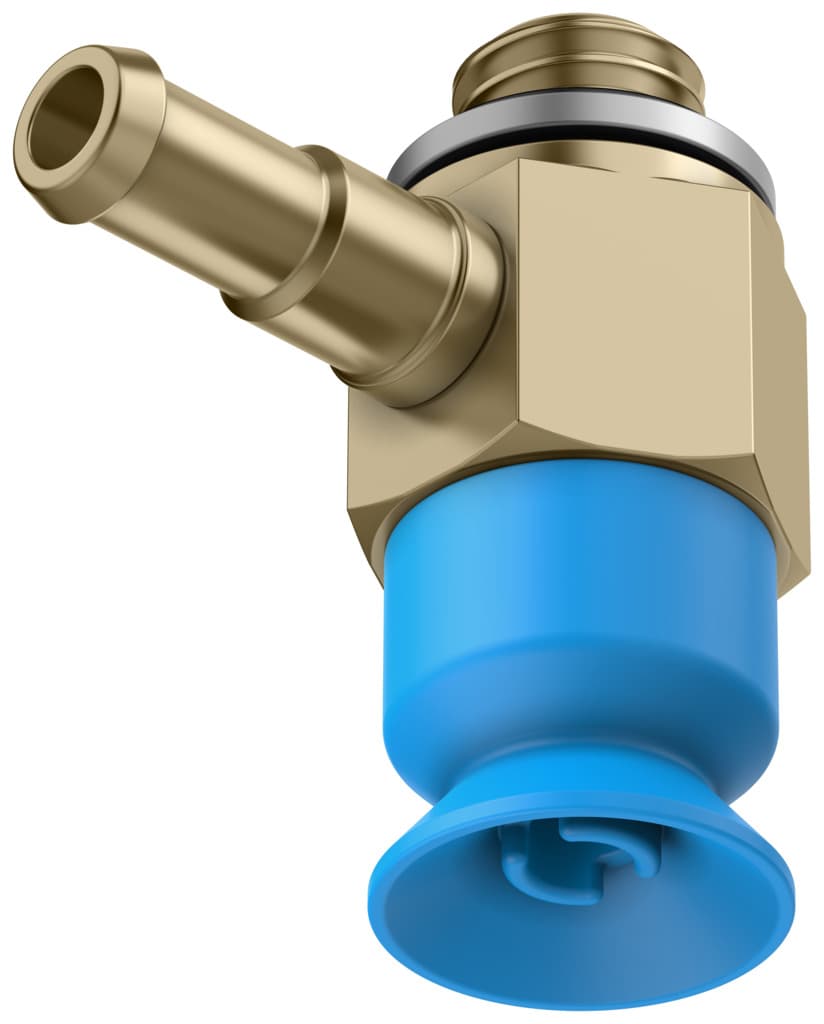

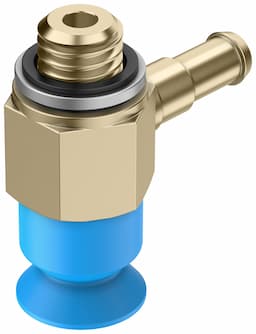

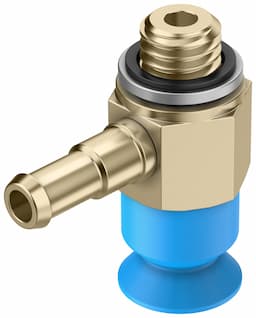

vas-8-m5-s-pur-b
Product ID:15184
Updated: 2026/4/3
Key Features
- 1Utilize an 8mm diameter suction cup with M5 vacuum port for versatile applications. 2、Ensure precise positioning and stability with the integrated height compensator. 3、Achieve effective gripping on flat surfaces using the round, flat suction cup shape. 4、Operate reliably within a pressure range from -0.095 MPa to 0 MPa. 5、Meet environmental safety standards with RoHS-compliant materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 0.9mm | Nominal width | 2mm |
| Suction cup diameter | 8mm | Suction cup volume | 0.095cm3 |
| Effective suction cup diameter | 7.1mm | Connection position | At the side |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 2.8N |
| Product weight | 4g | Type of mounting | Via vacuum connection |
| Vacuum connection | M5 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass |
| Note on materials | RoHS-compliant | Suction cup material | TPE-U(PU) |
| Manufacturer ID | 8025969 |
Specifications may be subject to change without notice
