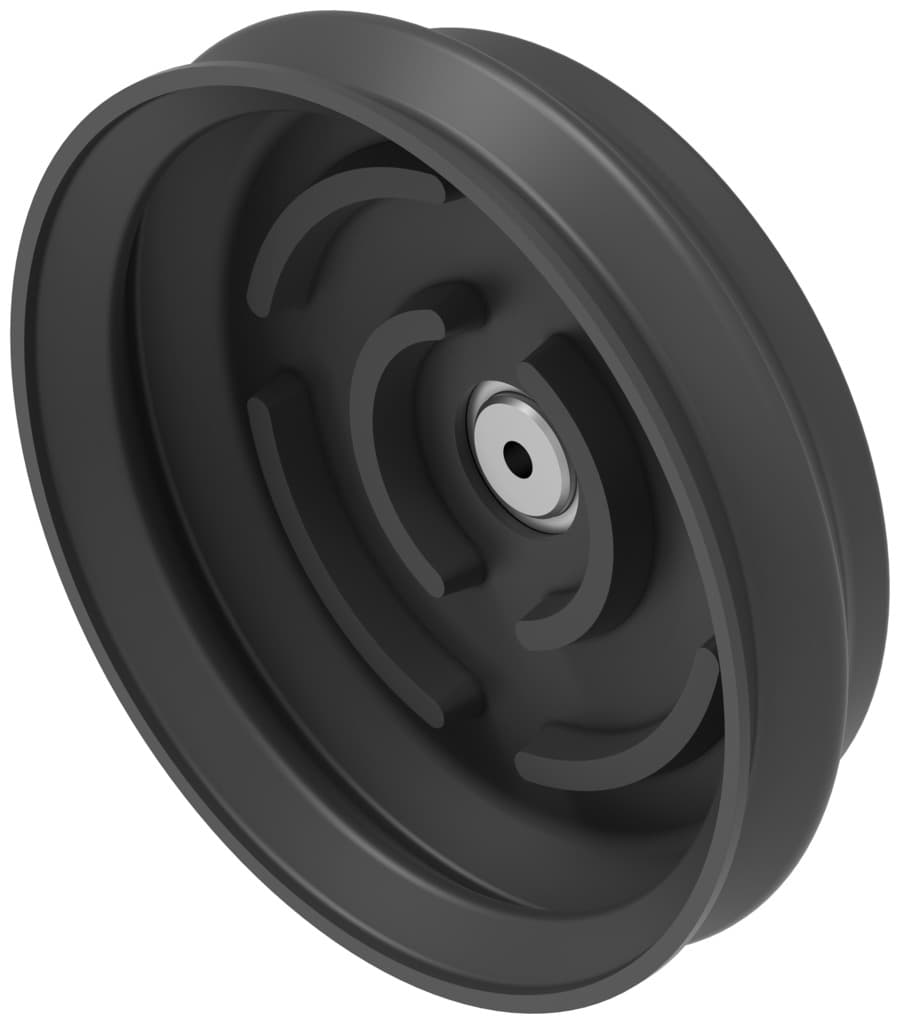

vasb-100-1/4-nbr
Product ID:8257
Updated: 2026/7/4
Key Features
- 1Ensure reliable vacuum gripping with a 100 mm diameter suction cup.
- 2Operate in a wide temperature range from -20°C to 80°C.
- 3Reduce maintenance costs with durable NBR material construction.
- 4Integrate seamlessly into existing Festo automation systems.
- 5Simplify procurement with standard 1/4-inch NPT mounting interface.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 4mm | Suction cup diameter | 100mm |
| Effective suction cup diameter | 85mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 397N |
| Holding force at nominal operating pressure | 397N | Mounting thread | G? |
| Suction cup mounting | G 1/4 | Vacuum connection | G1/4 |
| Color | Black | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 35416 |
Specifications may be subject to change without notice
