vasb-100-1/4-si-b
Product ID:1450
Updated: 2026/7/4
Key Features

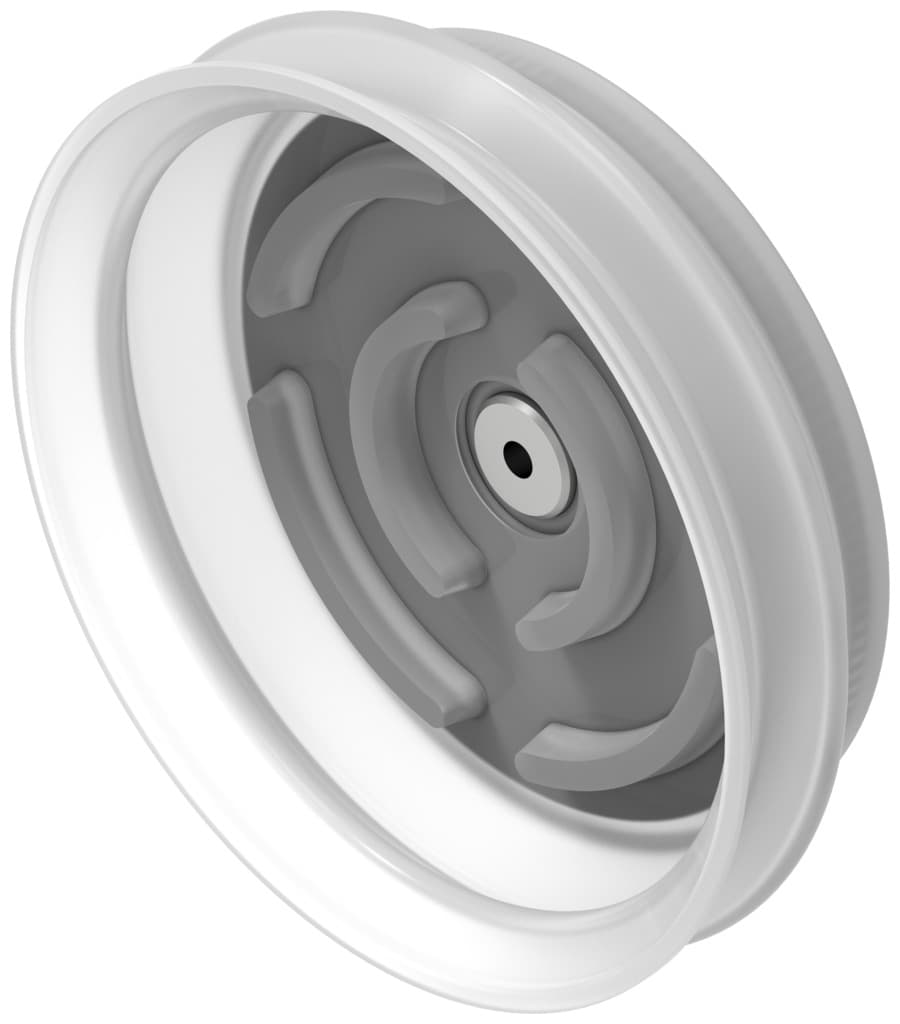

- 1Ensure reliable handling with the 100mm diameter VASB-100-1/4-SI-B suction cup.
- 2Minimize downtime through robust construction and certified quality.
- 3Reduce maintenance costs with a long-life design and compatible fittings.
- 4Simplify system integration using standard Festo interfaces and connections.
- 5Optimize ROI with readily available stock and fast shipping options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 15.5mm | Nominal width | 4mm |
| Suction cup diameter | 100mm | Suction cup volume | 128cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 395N |
| Product weight | 132g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Transparent |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 1382277 |
Specifications may be subject to change without notice
