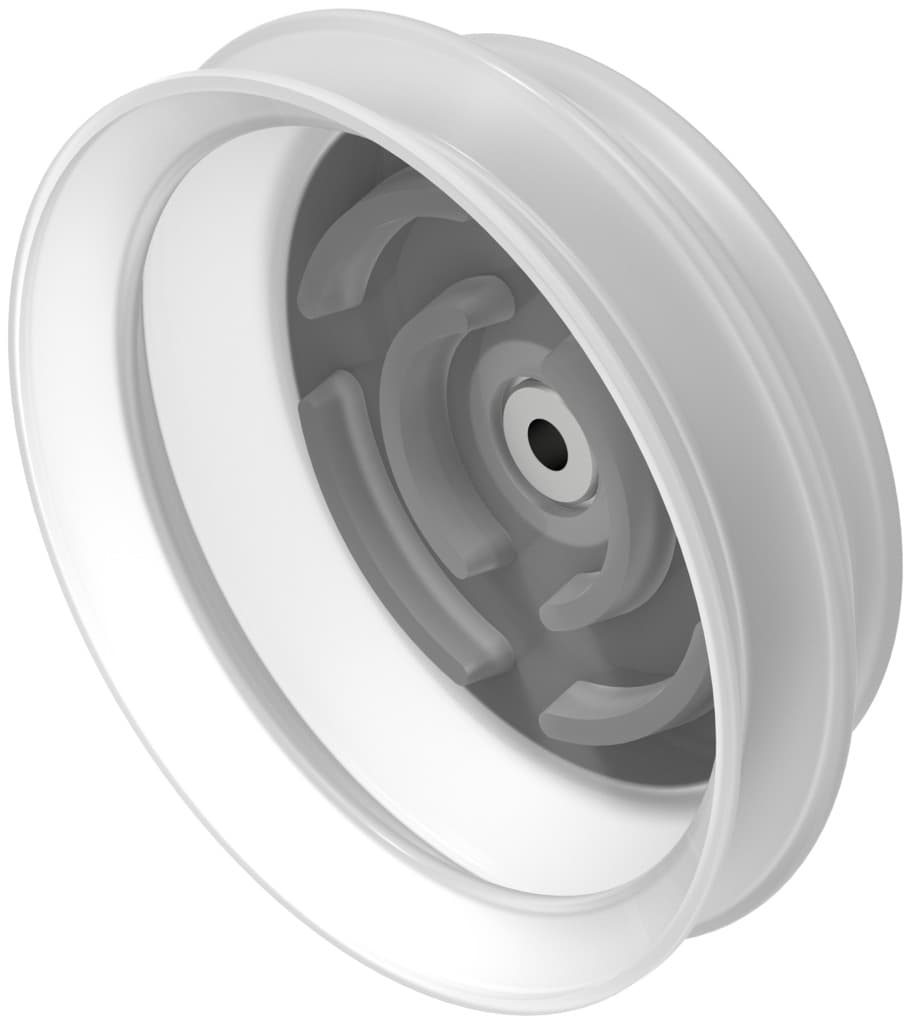

vasb-125-3/8-si-b
Product ID:1525
Updated: 2026/7/4
Key Features
- 1Ensure precise handling with height compensation for delicate automation tasks.
- 2Customize performance via software-adjustable system and module parameters.
- 3Reduce downtime with robust construction and durable component design.
- 4Simplify integration using top connection and standard Festo interfaces.
- 5Access comprehensive support including detailed documentation and error codes.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 25mm | Nominal width | 7mm |
| Suction cup diameter | 125mm | Suction cup volume | 307cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 610N |
| Product weight | 247g | Type of mounting | Via vacuum connection |
| Vacuum connection | G3/8 | Color | Transparent |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 1387375 |
Specifications may be subject to change without notice
