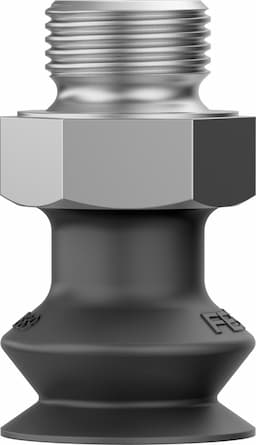

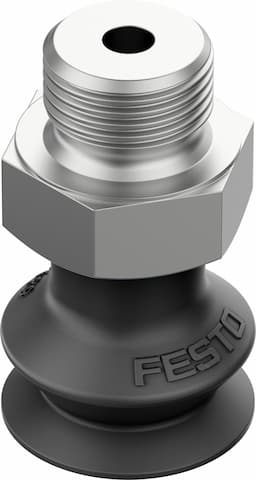

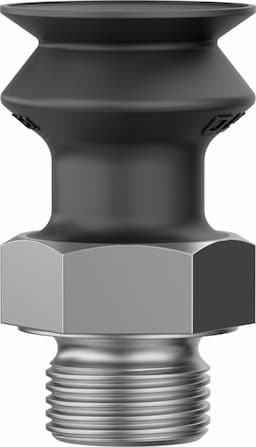

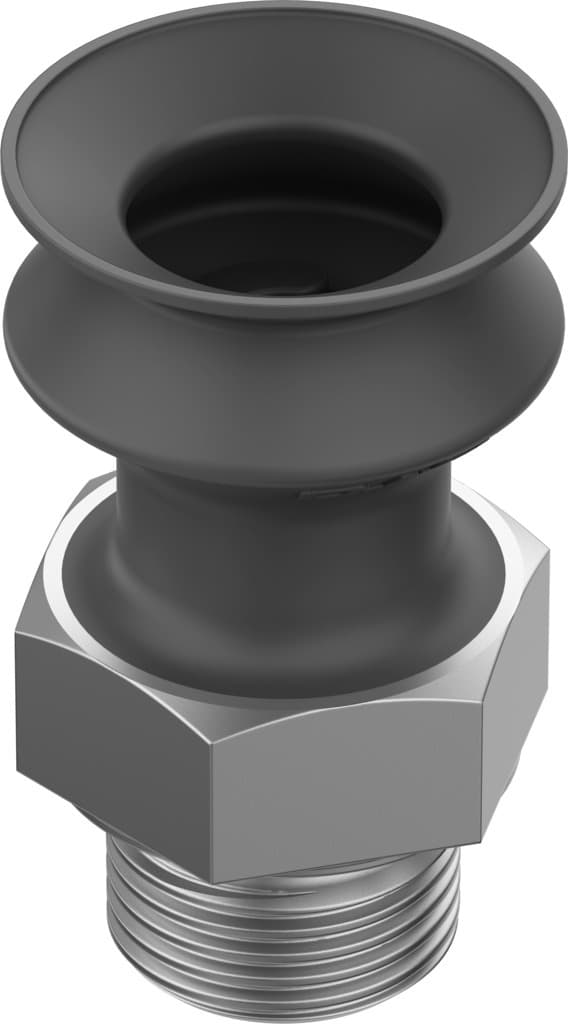

vasb-15-1/8-nbr
Product ID:8252
Updated: 2026/4/3
Key Features
- 1Ensure strong, consistent vacuum grip for reliable part handling. 2、Reduce downtime with durable NBR bellows construction and long service life. 3、Simplify integration using standardized 1/8" port and 15 mm diameter. 4、Lower total cost with reduced maintenance needs and high compatibility. 5、Access global stock for fast delivery and system optimization support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 3mm | Suction cup diameter | 15mm |
| Effective suction cup diameter | 12mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 7.9N |
| Holding force at nominal operating pressure | 7.9N | Mounting thread | G1/8 |
| Suction cup mounting | G 1/8 | Vacuum connection | G1/8 |
| Color | Black | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 35411 |
Specifications may be subject to change without notice
