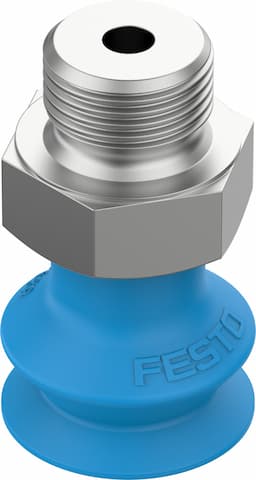

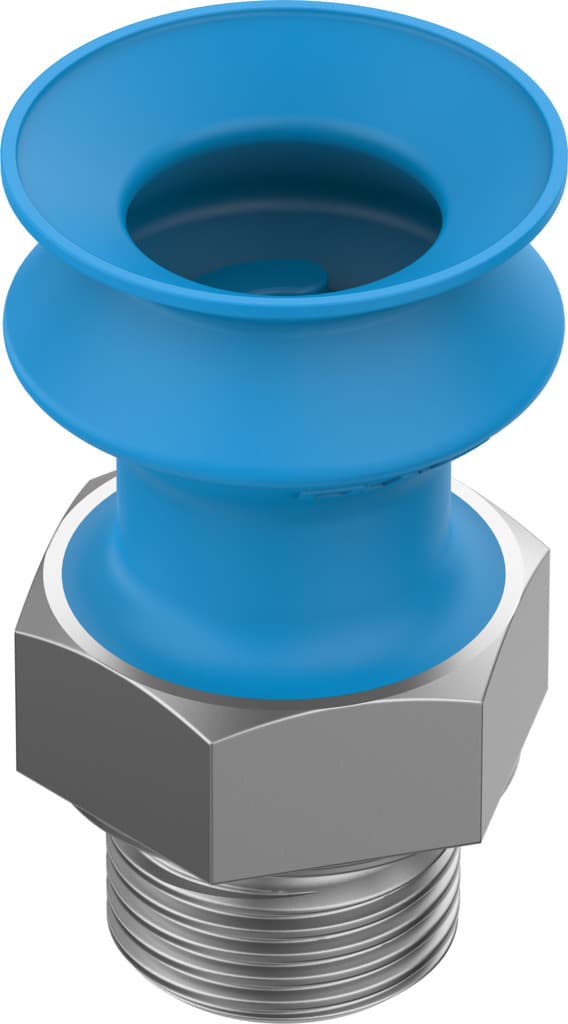

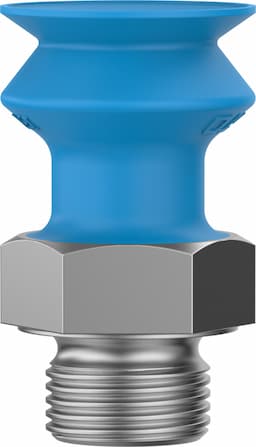

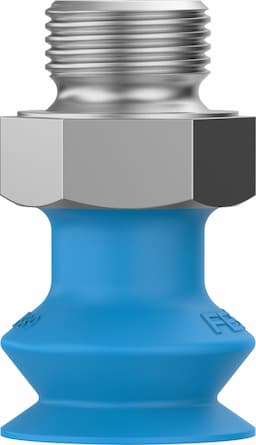

vasb-15-1/8-pur-b
Product ID:1528
Updated: 2026/4/3
Key Features
- 1Ensure precise and reliable performance in industrial automation. 2、Reduce downtime with durable PUR-rated construction. 3、Simplify integration with standardized mounting interfaces. 4、Lower long-term maintenance and replacement costs. 5、Access global stock for fast 24-hour delivery.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 5.6mm | Nominal width | 3mm |
| Suction cup diameter | 15mm | Suction cup volume | 0.83cm3 |
| Effective suction cup diameter | 12.4mm | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 8.5N |
| Product weight | 11g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/8 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 1395671 |
Specifications may be subject to change without notice
