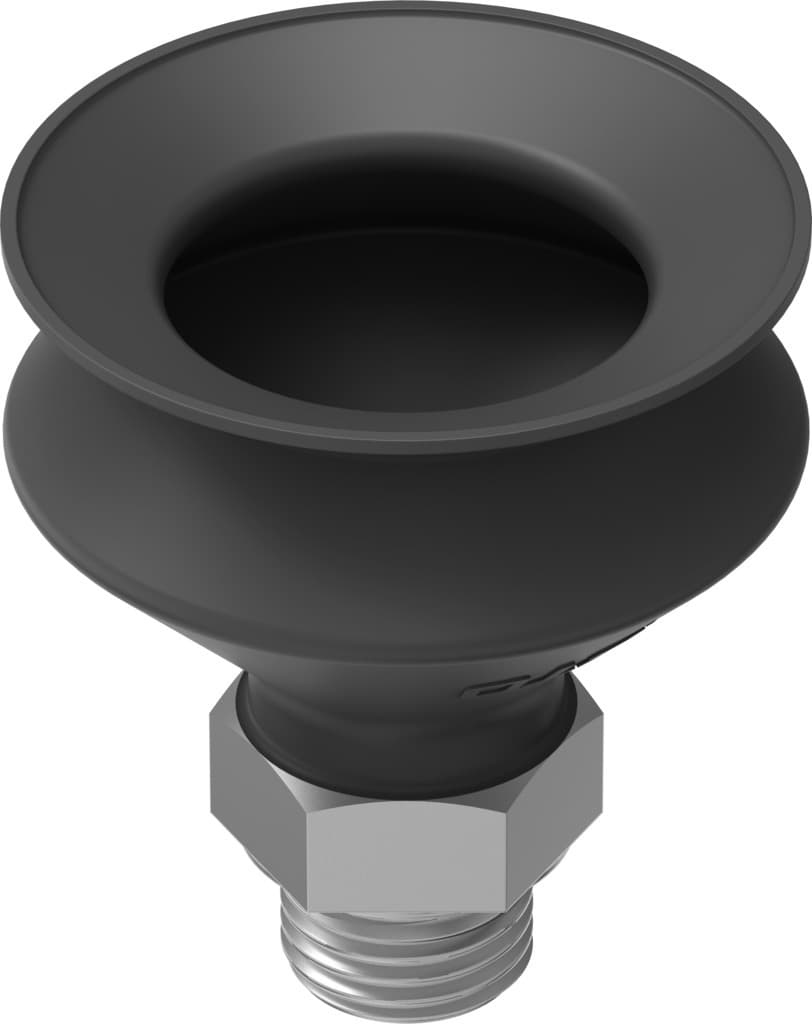

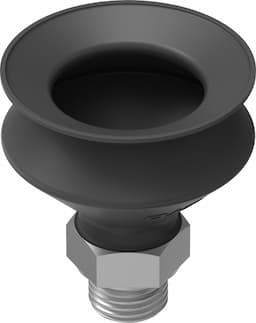

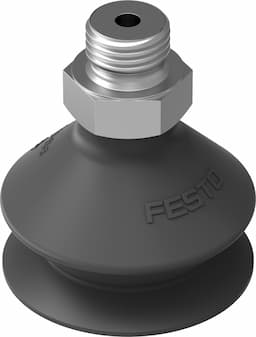

vasb-30-1/8-nbr
Product ID:8253
Updated: 2026/7/4
Key Features
- 1Ensure reliable performance in demanding automation systems.
- 2Feature durable NBR seals for extended service life.
- 3Deliver precise control for accurate pressure management.
- 4Simplify integration with compact, standardized interfaces.
- 5Reduce maintenance needs with Festo's proven quality.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 3mm | Suction cup diameter | 30mm |
| Effective suction cup diameter | 25mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 34N |
| Holding force at nominal operating pressure | 34N | Mounting thread | G1/8 |
| Suction cup mounting | G 1/8 | Vacuum connection | G1/8 |
| Color | Black | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 35412 |
Specifications may be subject to change without notice
