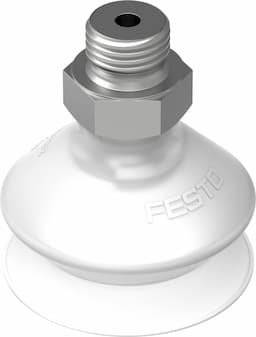

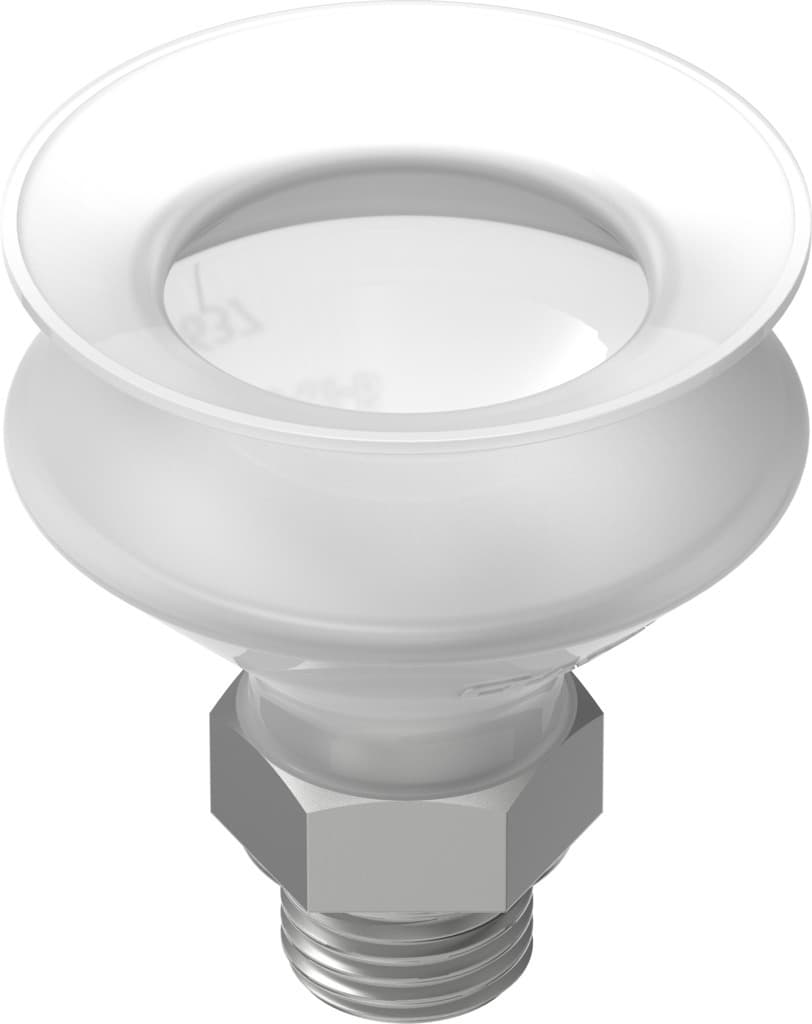

vasb-30-1/8-si-b
Product ID:1442
Updated: 2026/7/4
Key Features
- 1Ensure stable performance with 13.9 mm height compensation.
- 2Achieve a precise fit using the 30 mm suction cup diameter.
- 3Handle moderate to high vacuum tasks with 6.18 cm³ cup volume.
- 4Integrate easily via the top connection position.
- 5Rely on Festo's proven automation solution compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 13.9mm | Nominal width | 3mm |
| Suction cup diameter | 30mm | Suction cup volume | 6.18cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 25N |
| Product weight | 7g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/8 | Color | Transparent |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 1377637 |
Specifications may be subject to change without notice
