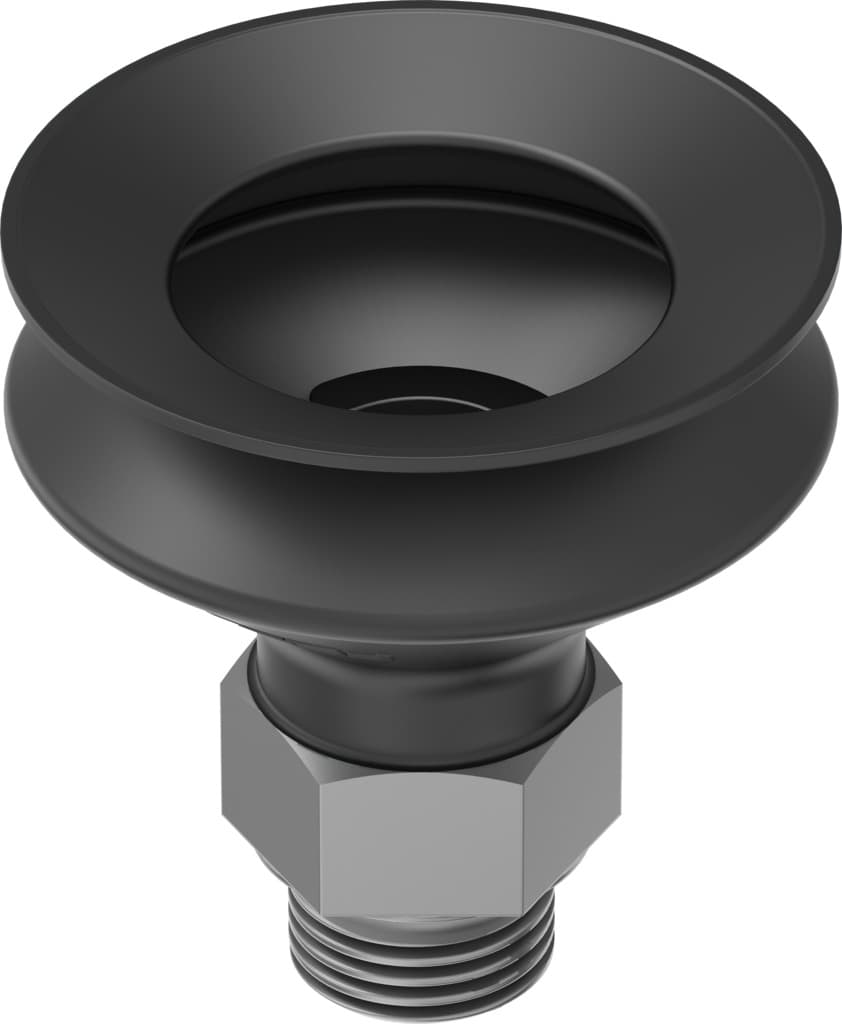

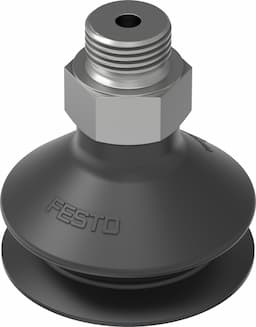

vasb-40-1/4-nbr
Product ID:8254
Updated: 2026/7/4
Key Features
- 1Enhance efficiency with high-quality Festo automation components like grippers and valves.
- 2Solve diverse handling needs with versatile pneumatic and electric gripping technology.
- 3Ensure optimal system performance using efficient air preparation and filtration units.
- 4Reduce complexity with standardized IO-Link technology for simple sensor communication.
- 5Access a comprehensive product range from single components to integrated solutions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 4mm | Suction cup diameter | 40mm |
| Effective suction cup diameter | 32mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 56N |
| Holding force at nominal operating pressure | 56N | Mounting thread | G? |
| Suction cup mounting | G 1/4 | Vacuum connection | G1/4 |
| Color | Black | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 35413 |
Specifications may be subject to change without notice
