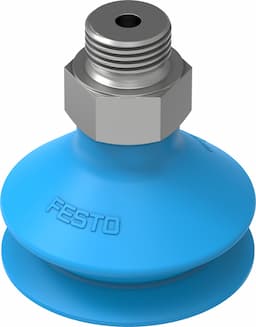

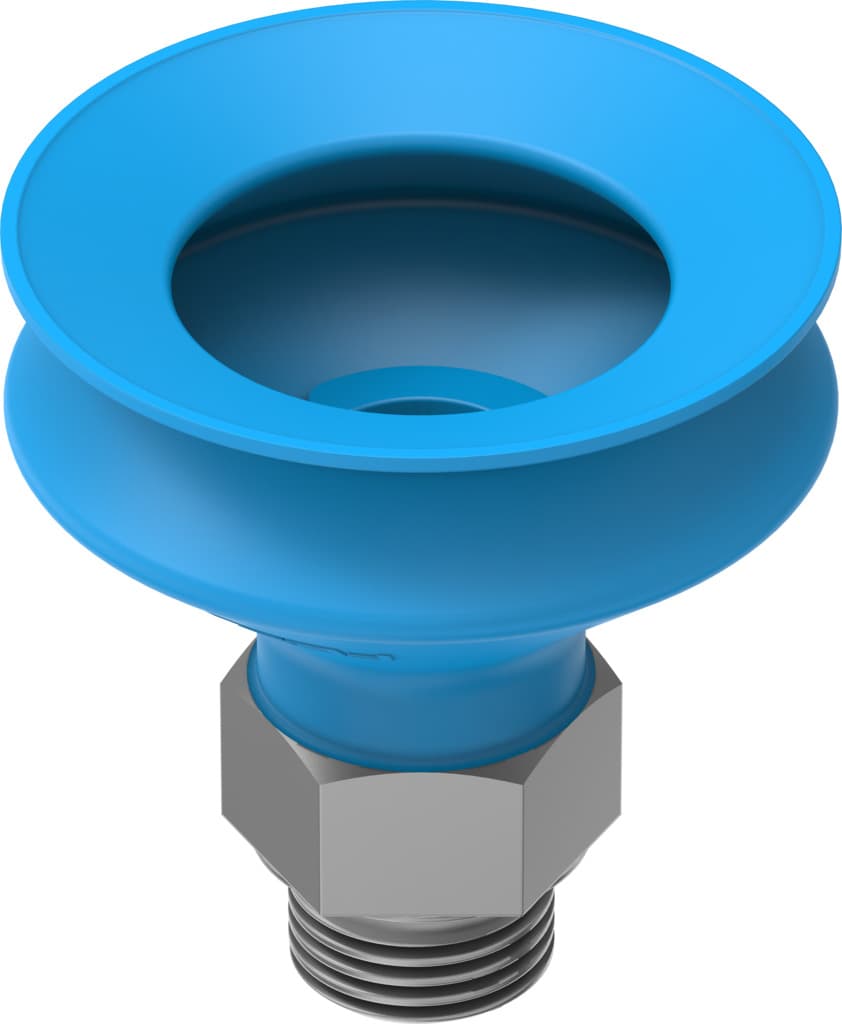

vasb-40-1/4-pur-b
Product ID:1530
Updated: 2026/7/4
Key Features
- 1Integrate seamlessly into industrial automation systems for smooth operations.
- 2Guarantee high reliability and durability with robust components.
- 3Tailor system parameters to meet specific application requirements.
- 4Simplify setup of complex systems with user-friendly design.
- 5Access comprehensive support and documentation from Festo.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 13.7mm | Nominal width | 4mm |
| Suction cup diameter | 40mm | Suction cup volume | 11.11cm3 |
| Effective suction cup diameter | 34.4mm | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 60N |
| Product weight | 30g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Die-cast zinc |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 1395691 |
Specifications may be subject to change without notice
