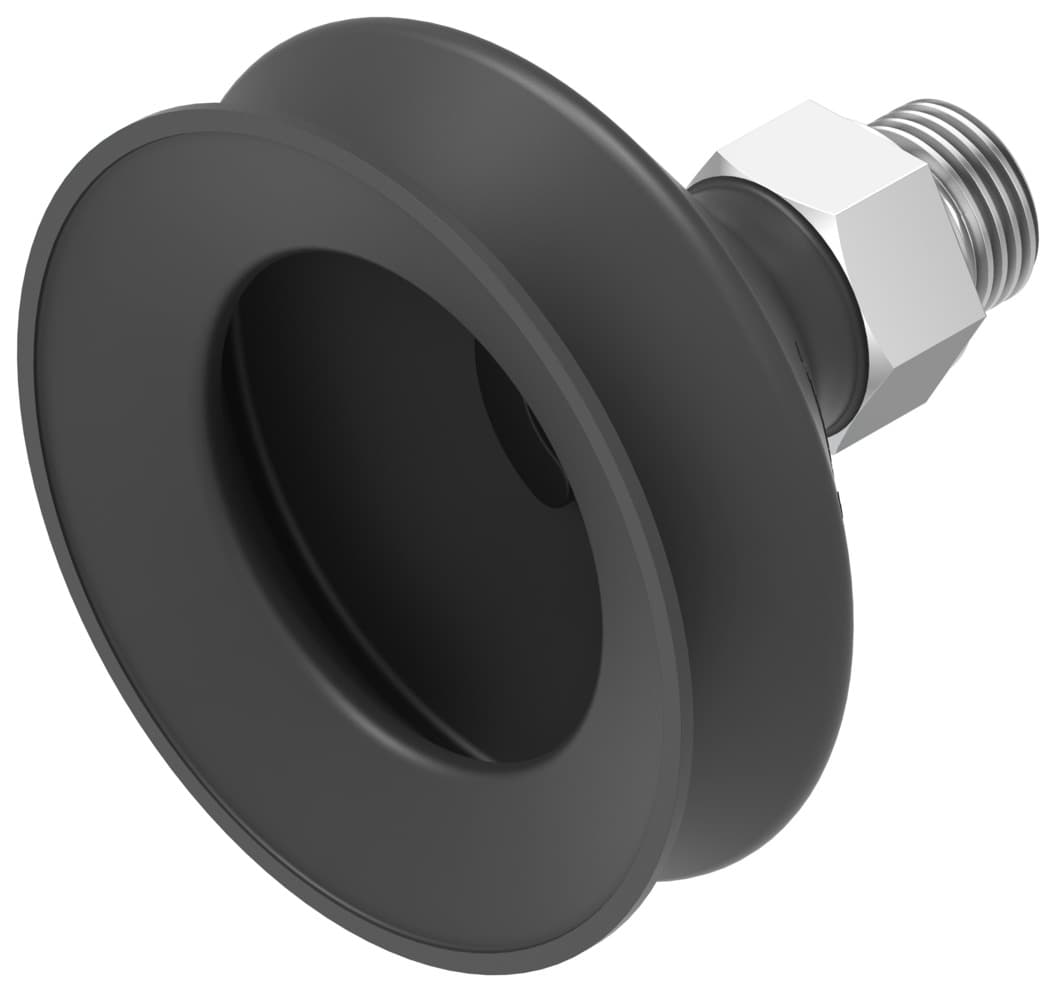

vasb-55-1/4-nbr
Product ID:8255
Updated: 2026/4/3
Key Features
- 1Ensure reliable performance with durable NBR seals. 2、Resist oils and chemicals for harsh environments. 3、Integrate easily into complex automation systems. 4、Reduce downtime with easy installation and maintenance. 5、Meet stringent industry standards for quality assurance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 4mm | Suction cup diameter | 55mm |
| Effective suction cup diameter | 44mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 106N |
| Holding force at nominal operating pressure | 106N | Mounting thread | G? |
| Suction cup mounting | G 1/4 | Vacuum connection | G1/4 |
| Color | Black | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 35414 |
Specifications may be subject to change without notice
