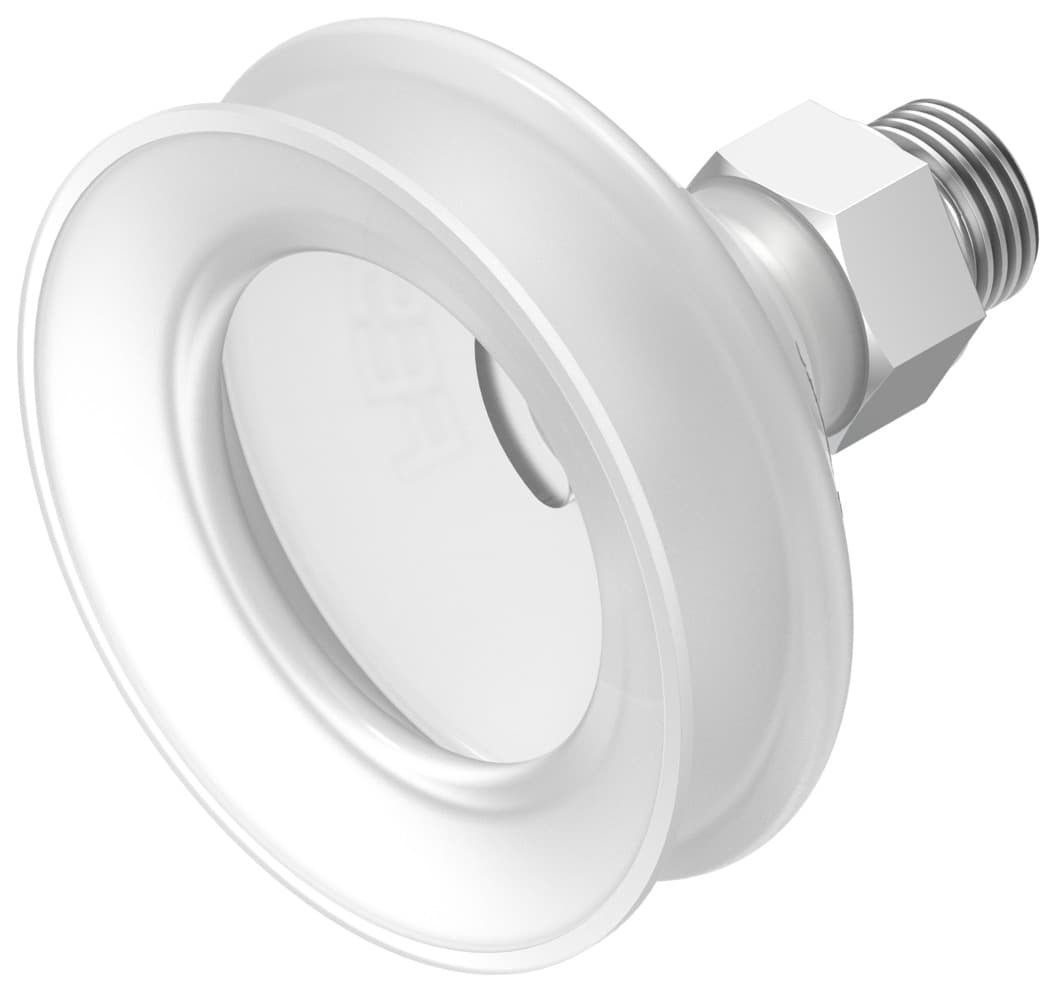

vasb-55-1/4-si-b
Product ID:1380
Updated: 2026/4/3
Key Features
- 1Compensate up to 20mm in height for precise positioning. 2、Handle loads robustly with a 55mm diameter suction cup. 3、Operate from -40°C to 200°C for diverse industrial use. 4、Ensure reliability with ISO 8573-1:2010 air standards. 5、Resist corrosion using durable VMQ silicone material.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 20mm | Nominal width | 4mm |
| Suction cup diameter | 55mm | Suction cup volume | 30.4cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 110N |
| Product weight | 29g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Transparent |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 1373812 |
Specifications may be subject to change without notice
