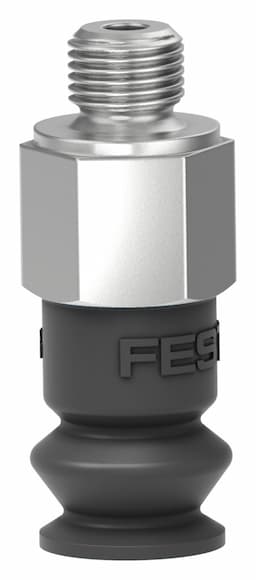

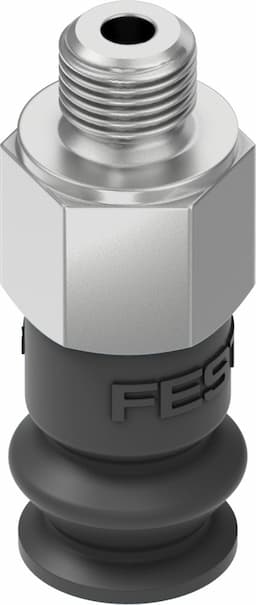

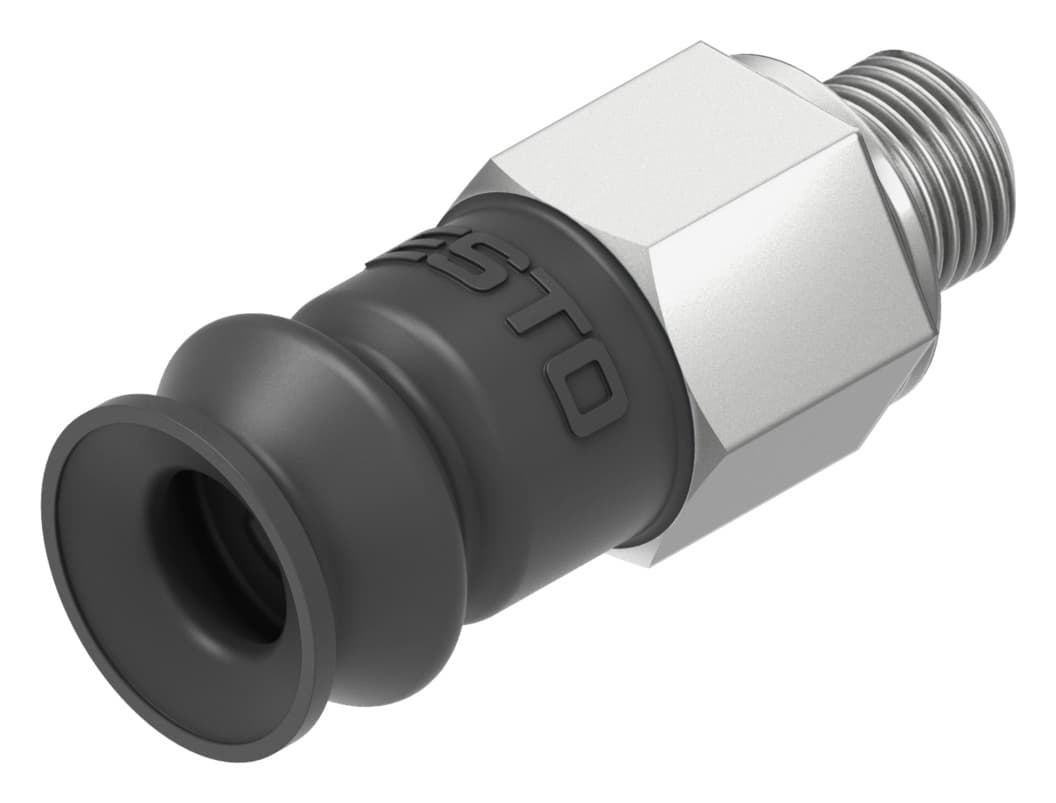

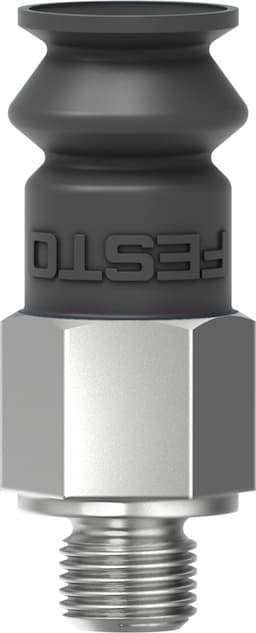

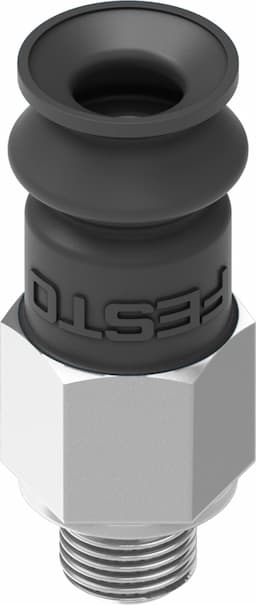

vasb-8-m5-nbr
Product ID:8251
Updated: 2026/4/3
Key Features
- 1Ensure precise vacuum operations with an 8 mm diameter and 2 mm nominal size. 2、Provide strong holding forces using a 5.5 mm effective suction diameter. 3、Enhance flexibility and durability with a round bellows shape featuring 1.5 convolutions. 4、Operate versatilely in environments from -20 °C to 80 °C. 5、Achieve reliable performance with 1.6 N breakaway and holding force.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2mm | Suction cup diameter | 8mm |
| Effective suction cup diameter | 5.5mm | Connection position | Top |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 1.6N |
| Holding force at nominal operating pressure | 1.6N | Mounting thread | M5 |
| Suction cup mounting | M5 | Vacuum connection | M5 |
| Color | Black | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 35410 |
Specifications may be subject to change without notice
