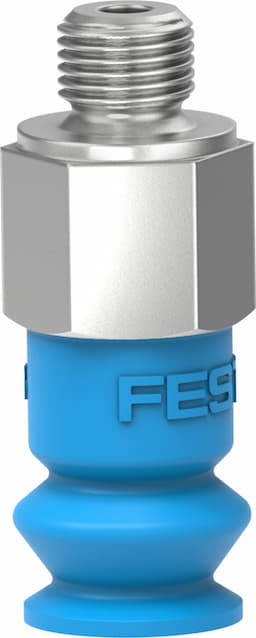

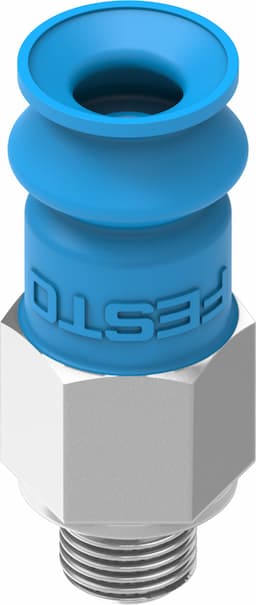

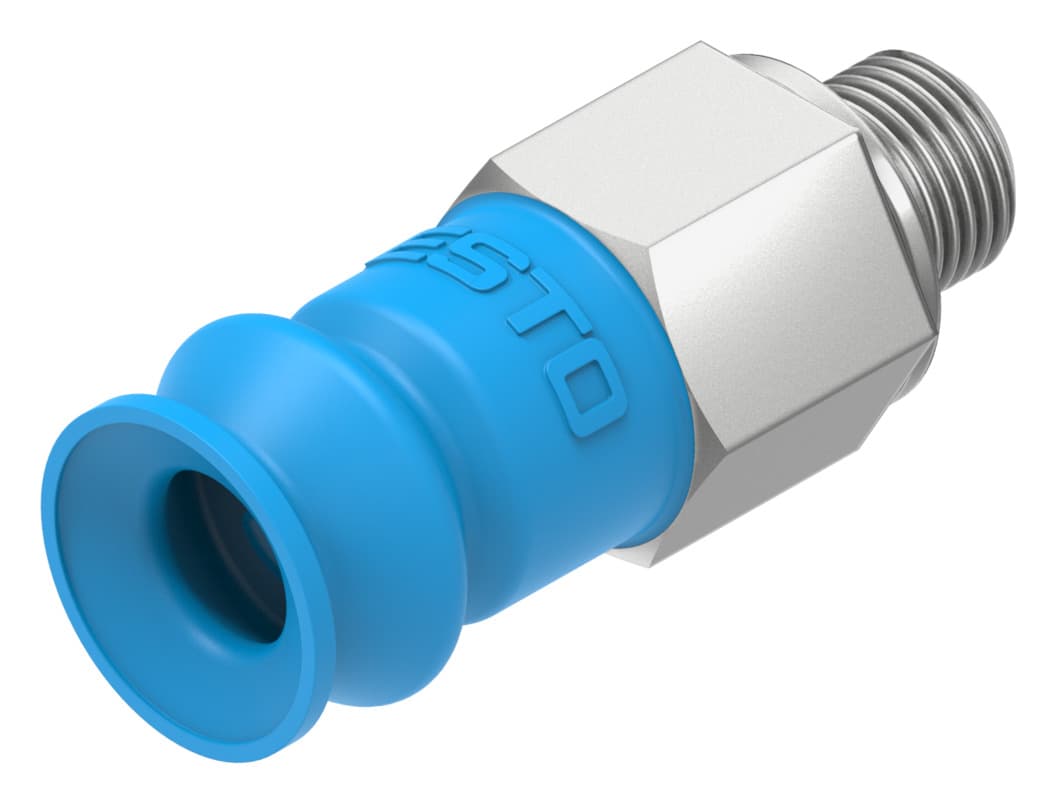

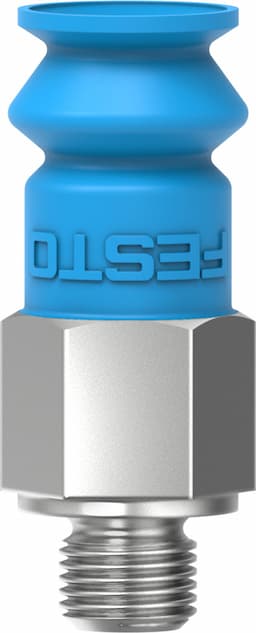

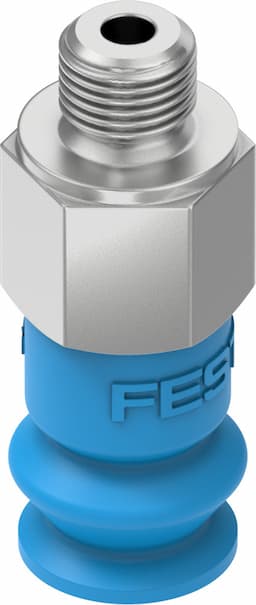

vasb-8-m5-pur-b
Product ID:1527
Updated: 2026/4/3
Key Features
- 1Ensure precise positioning with a 3.3 mm height compensator. 2、Handle small objects reliably with a 2 mm diameter. 3、Provide excellent grip using a round, bellows-shaped design. 4、Operate versatilely within a -0.95 to 0 bar pressure range. 5、Resist corrosion with durable high-quality PUR material.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 3.3mm | Nominal width | 2mm |
| Suction cup diameter | 8mm | Suction cup volume | 0.163cm3 |
| Effective suction cup diameter | 7.1mm | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 2.8N |
| Product weight | 4g | Type of mounting | Via vacuum connection |
| Vacuum connection | M5 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 1395637 |
Specifications may be subject to change without notice
