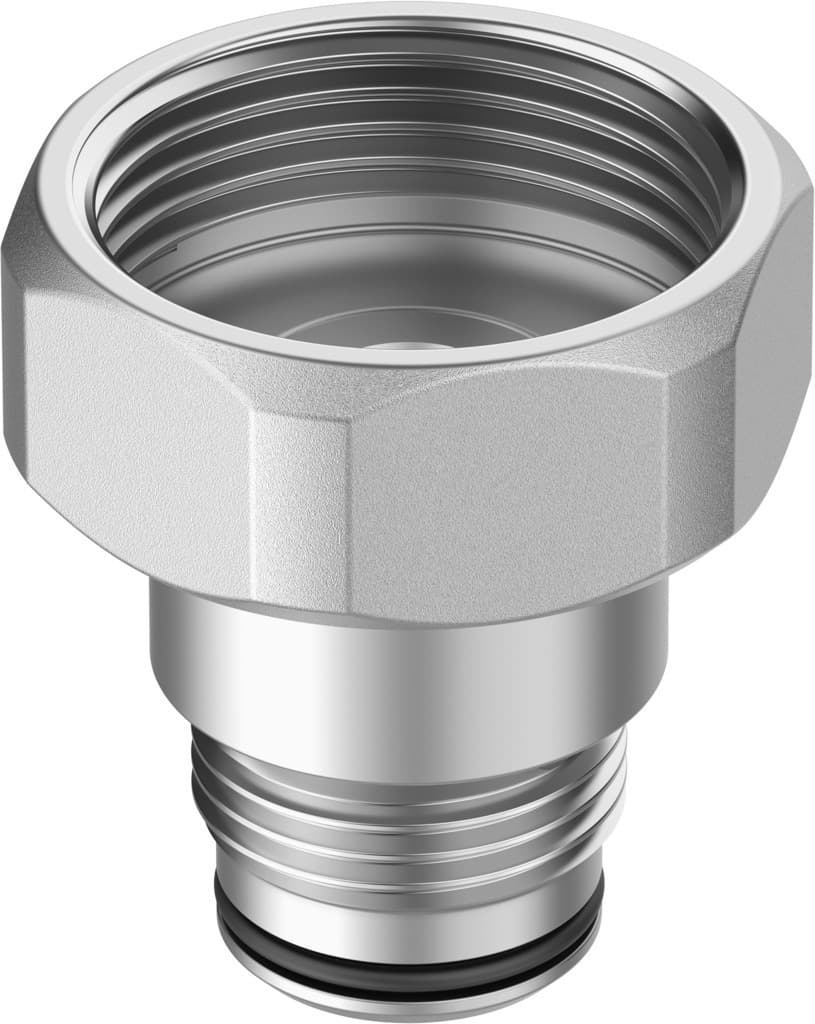

vavc-f12-cc-13-t
Product ID:224
Updated: 2026/4/3
Key Features
- 1Meet ATEX Zone 1/2/21/22 standards for hazardous environments. 2、Construct with high-alloy stainless steel cover for corrosion resistance. 3、Utilize PTFE spindle and seat seals for superior durability. 4、Operate across a wide -30°C to 200°C media temperature range. 5、Mount in any position for flexible system integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width DN | 13 | Structural design | Cartridge and cover (integrated) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Product weight | 247g | Note on materials | RoHS-compliant |
| Shut-off element material | PTFE | Manufacturer ID | 8180301 |
Specifications may be subject to change without notice
